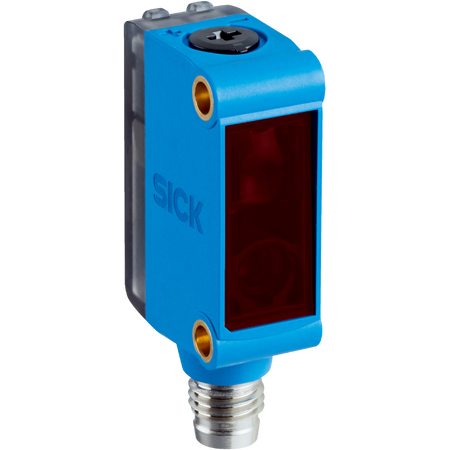

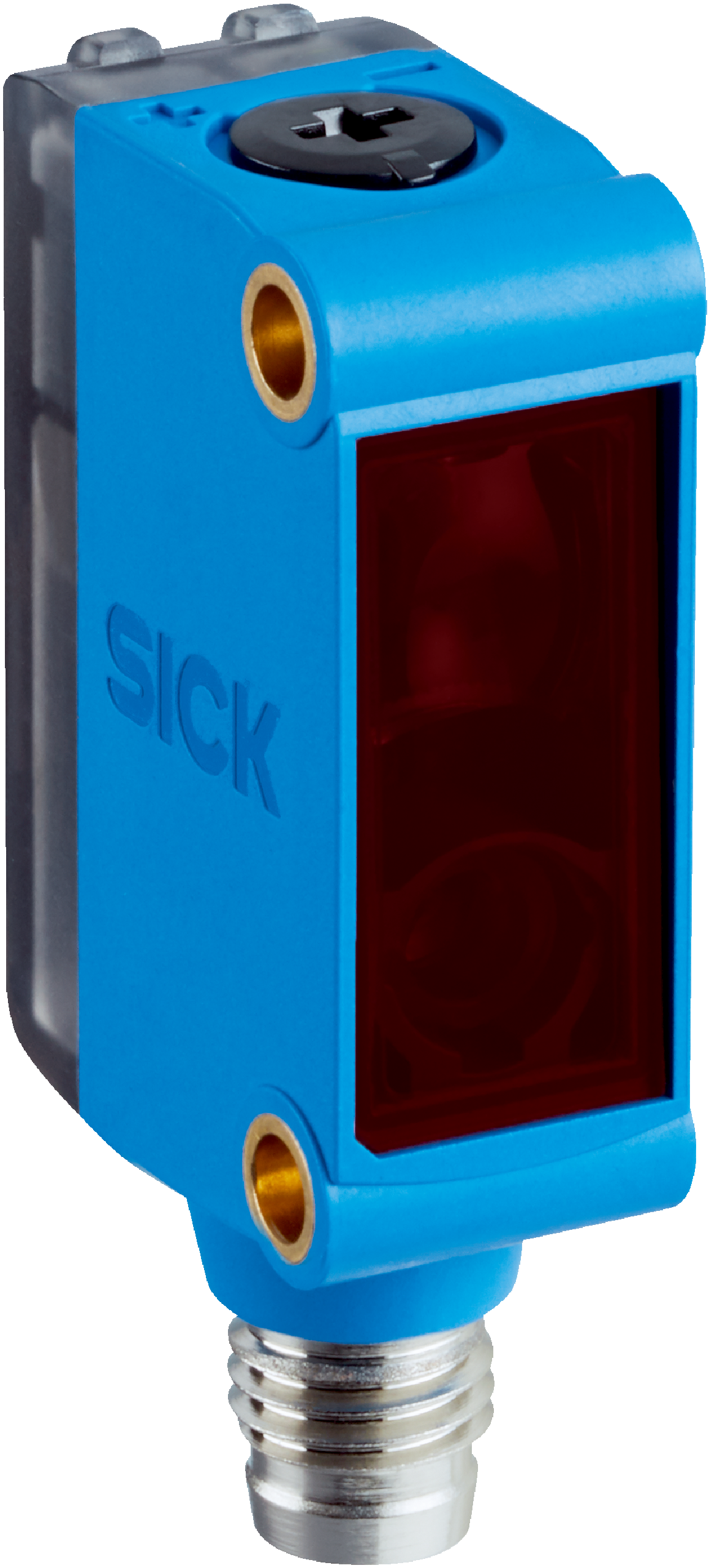

GTE6L-P4211 | Photoelectric sensors
The SICK GTE6L-P4211 is a reliable photoelectric proximity sensor featuring a visible red laser light source, adjustable sensing range, and robust IP67 rated housing, ideal for precise object detection in industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GTE6L-P4211 | Photoelectric sensors
Brand: SICK
SKU: 1109683
Alternatively Known As: Photoelectric sensor, Proximity sensor, Laser sensor, PNP sensor, Industrial sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Cable material: Plastic PVC
- Connector: Male M8, 4-pin
- Laser class: 1
- Wavelength: 680 nm
- Pulse duration: 2 µs
- Maximum pulse power: ≤ 11.9 mW
- Typical smallest detectable object: 0.4 mm at 150 mm distance
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0 mm to 450 mm, optimal 5 mm to 400 mm
- Visible red laser light source with point-shaped light spot
- Laser class 1 with wavelength 680 nm
- Adjustable sensing range via potentiometer with 5 rotations
- Light/dark switching mode with PNP digital output
- LED indicators for power and object detection status
- High switching frequency up to 1000 Hz and fast response time ≤ 625 µs
- Robust plastic ABS housing with IP67 protection rating
- Operating temperature range from -20 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Long service life of 100,000 hours reduces waste and replacement frequency
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTE6L-P4211 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
