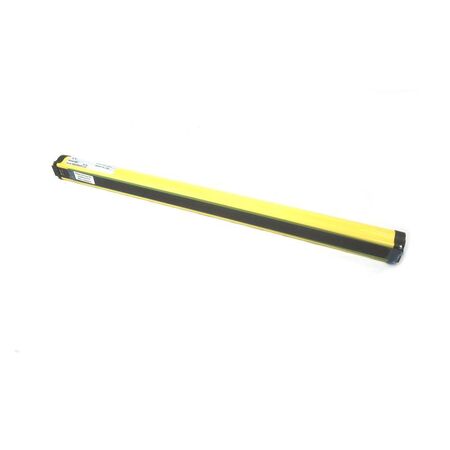

GuardShield Light Curtain Receiver | Type 2 Safety | IP65 Rated | 30mm Resolution | 640mm Height | by Allen-Bradley
The GuardShield Light Curtain Receiver is a Type 2 safety device designed for industrial applications, featuring a 30mm resolution and an IP65 rating for dust and water resistance. With a protective height of 640mm and a detection range of 0.3 to 16 meters, it ensures reliable operator protection in automation systems and manufacturing lines, enhancing workplace safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: 2 safety light curtain receiver
- Power: 7W at 24VDC
- Resolution: 30mm
- Range: 0.3 to 16 meters
- Protective height: 640mm
- Operating temperature: -10 to 55°C
- Ingress protection: IP65
- Dimensions (H x L x W): 640mm x 40mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 2 safety light curtain receiver
- IP65 rated for dust and water resistance
- 30mm resolution for precise detection
- Operating ambient temperature from -10 to 55°C
- Power consumption of 7 watts at 24VDC
- Protective height of 640mm
- Detection range from 0.3 to 16 meters
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light curtain systems to ensure compliance with safety standards.
Applications
- Industrial safety guarding for machinery
- Automation systems requiring presence detection
- Manufacturing lines needing operator protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental impacts
- Durable IP65 design reduces need for frequent replacements
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 440LR2KA0640YD GuardShield Light Curtain Receiver is available for immediate purchase, ideal for industrial safety guarding and automation applications.
