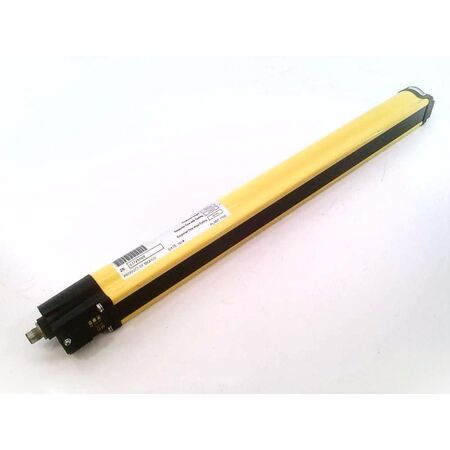

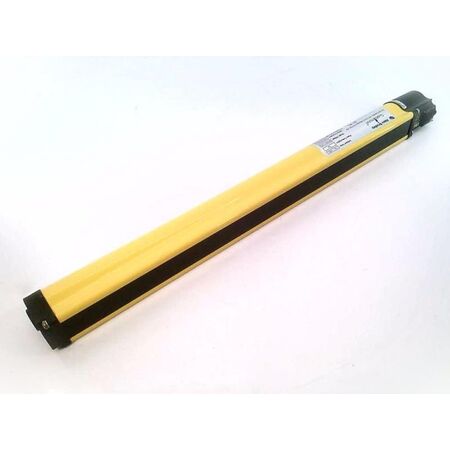

GuardShield Type 4 Light Curtain Receiver | 14mm Resolution | 480mm Protective Height | IP65 Rated | by Allen-Bradley
The GuardShield Type 4 Light Curtain Receiver by Allen-Bradley features a 14mm resolution and a protective height of 480mm, making it ideal for industrial safety applications. With an IP65 rating for dust and water resistance, this receiver operates at 24VDC and offers a detection range of 0.3 to 7 meters. Perfect for automation systems and manufacturing lines, it ensures operator protection and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: 4 Light Curtain Receiver
- Resolution: 14mm
- Protective Height: 480mm
- Power Supply: 24VDC
- Power Consumption: 7W max
- Detection Range: 0.3 to 7 meters
- Ingress Protection: IP65
- Connector: Micro quick disconnector
- Dimensions (H x L x W): 480mm x 30mm x 50mm
- Weight: 1.5 kg
Key Features
- Type 4 safety light curtain receiver
- 14mm resolution for precise detection
- 480mm protective height
- Micro quick disconnector for easy installation
- IP65 rated for dust and water resistance
- Operates at 24VDC with 7W max power consumption
- Detection range from 0.3 to 7 meters
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety equipment to ensure compliance and optimal performance.
Applications
- Industrial safety guarding for machinery
- Automation systems requiring presence detection
- Manufacturing lines needing operator protection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and associated environmental impacts
- Durable IP65 design reduces need for frequent replacements
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 440LR4J0480YD GuardShield Type 4 Light Curtain Receiver is available for immediate purchase, ideal for industrial safety and automation applications.
