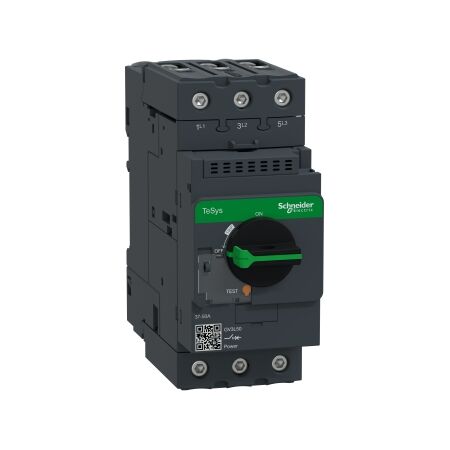

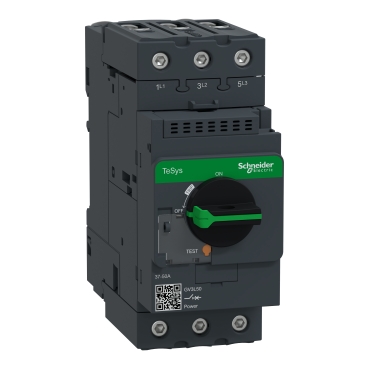

GV3L Motor Circuit Breaker 50A | Magnetic Protection | Everlink Technology | by Clipsal
The GV3L Motor Circuit Breaker 50A is designed for reliable motor protection in industrial and commercial applications. Featuring advanced Everlink terminal technology for secure connections and a high breaking capacity of 50 kA at 400V AC, this magnetic circuit breaker ensures safety and efficiency in control panels for machinery, pumps, and HVAC systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GV3L Motor Circuit Breaker 50A | Magnetic Protection | Everlink Technology | by Clipsal
Brand: Clipsal
SKU: SCHGV3L50
Alternatively Known As: GV3L50 Motor Circuit Breaker, 50A Magnetic Motor Breaker, Everlink Motor Protection Breaker, Schneider GV3L50, Motor CB 50A Everlink
Technical Specifications
- Type: Magnetic Motor Circuit Breaker
- Rated Current: 50A
- Breaking Capacity: 50 kA at 400V AC
- Everlink terminal technology for vibration-proof connections
- Trip Unit Technology: Magnetic
- Standards: IEC 60947-2, IEC 60947-4-1
- Mounting: DIN rail or panel mounting
- Operating Voltage: 690V AC max
- Ambient Temperature: -20°C to +60°C
- Dimensions (H x L x W): 130mm x 120mm x 55mm
- Weight: 1.2 kg
Key Features
- Magnetic circuit breaker for motor protection
- 50A rated current
- Everlink terminal technology for secure and reliable connections
- Compact design for easy integration into control panels
- High breaking capacity for enhanced safety
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Motor protection in industrial and commercial electrical panels
- Control panels for machinery and automation
- Pumps, compressors, and HVAC systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces risk of electrical faults, minimizing downtime and waste
- Long service life reduces replacement frequency
- Efficient protection helps optimize energy use in motor-driven systems
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal GV3L Motor Circuit Breaker Magnetic 50A Everlink (SCHGV3L50) is available for immediate purchase. Ideal for industrial and commercial motor protection applications.
