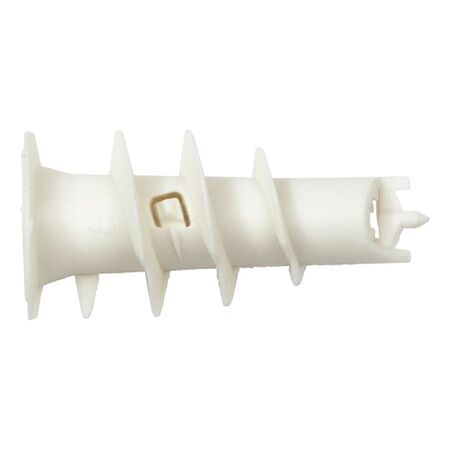

Gypsum Plasterboard Anchor W GS Type K | Fast Installation | Reinforced Centre Point | @Pack of 50 | by Wurth
Gypsum Plasterboard Anchor W GS Type K offers fast installation without pre-drilling, making it ideal for secure fixing in plasterboard panels. Designed for professional use, this anchor features a reinforced centre point and a mechanical interlock attachment, ensuring reliability and ease of use. Perfect for both residential and commercial applications, it simplifies the mounting process while maintaining structural integrity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: W-GS/K
- Anchor length: 33 mm
- Material: Plastic
- Required particle-board screw diameter: 4.5 - 5 mm
- Hole diameter in component: 6.5 mm
- Minimum component thickness: 9.5 mm
- Max. attachment height dependent on screw length
- Temperature resistance: -40 °C to 80 °C
- Edge clearance: 50 mm
- Centre-to-centre distance: 100 mm
- Suitable for gypsum plasterboard thickness ≥ 25 mm
- Dimensions (H x L x W): 33mm x 33mm x 6.5mm
- Weight: 0.05 kg
Key Features
- Cost-effective and fast installation without pre-drilling or additional setting tools
- High-quality plastic with mechanical interlock attachment
- Hexagon drive allows insertion with PZ, AW, or TX bits
- Twist lock triggered by screwing in a screw, preventing anchor rotation when unscrewing
- Minimal space required behind panel (only 15 mm)
- Lathe centre enables easy positioning and drilling into the panel
- Compatible with cordless screwdrivers and suitable bits
- Recommended use with ASSY®-D screws
Professional Installation Requirements
- Installation by a qualified tradesperson or professional recommended to ensure secure fixing and compliance with building standards.
Applications
- Installation in gypsum plasterboard panels
- Suitable for mounting components requiring secure fixing in plasterboard
- Use with wood screws or chipboard screws
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Plastic construction reduces metal waste and corrosion issues
- Enables secure fixing reducing need for repairs and replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Gypsum Plasterboard Anchor W GS Type K is available for immediate purchase, ideal for fast and secure plasterboard installations in residential and commercial construction.
