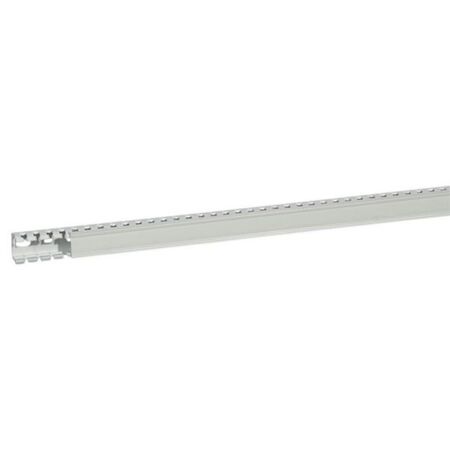

Halogen-Free Cable Duct 25x25mm ABS Grey Legrand

BRAND: Legrand
SKU: 636200
$90.10 List price: $112.30
1 LEN ($90.10 per LEN)
+ −
30 Days Return Electricians Unlock Trade Access
Legrand cable duct features ABS, 25x25mm, and self-extinguishing. Ideal for switchboard and panel cable management.
Technical Specifications
  • Material: Acrylonitrile butadiene styrene (ABS)
  • Cross-section: 25x25 mm
  • Wiring capacity: 391 mm²
  • Colour: Grey (standard electrical circuits)
  • Distance of slots: 6.5 mm
  • Slit width: 6 mm
  • Type of side wall: Hole-/slot punching
  • Halogen free: Yes
  • Self-extinguishing: Yes
  • Flexible: No
  • Type of fastening: Bottom perforation
  • With cover: Yes
  • Operating temperature: -5 to 60 °C
  • Storage temperature: -25 to 60 °C
  • Dimensions (H x L x W): 25mm x 2000mm x 25mm
  • Weight: 0.5 kg
Key Features
  • Halogen free, does not release halogenated gases in case of fire
  • Hand-splitting cable duct with side and bottom cut-outs for dust-free and smooth cutting
  • Retaining bossage keeps wires and cables at the bottom and prevents pull-out during wiring
  • Allows wiring on two levels
  • T-junction possible between vertical and horizontal ducts without obstacle
  • Cover easily installed by frontal-clicking or rotation without tools
  • Ribbing on edges helps align labels
  • Self-extinguishing material
Professional Installation Requirements
  • Professional installation by a qualified electrician or technician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Installations in buildings receiving public
  • Rolling stock such as trains and subways
  • IT rooms and data centers
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen free material reduces toxic gas emissions in case of fire
  • Self-extinguishing properties enhance fire safety
  • Durable ABS material supports long product life and reduces waste
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.

Available Now

Legrand Halogen Free Blue Cable Duct 25x25 is available for immediate purchase, ideal for electrical installations in public buildings, transport, and IT environments.

F02998EN-00 (F02998EN-00.pdf, 2,363 Kb) [Download]

F02998FR-00 (F02998FR-00.pdf, 2,351 Kb) [Download]

ex223001_0481 (ex223001_0481.pdf, 180 Kb) [Download]

ex223001_0479 (ex223001_0479.pdf, 66 Kb) [Download]
