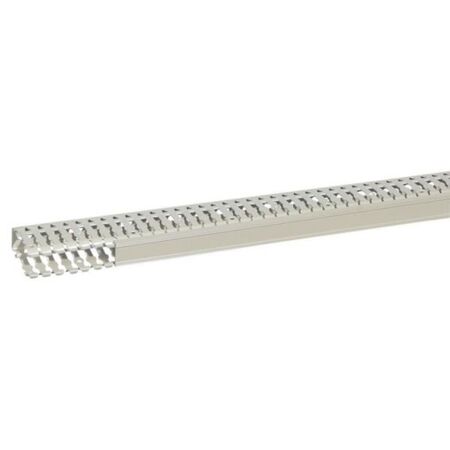

Halogen-Free Cable Duct 25x60mm ABS Grey Legrand

BRAND: Legrand
SKU: 636202
$104.20 List price: $129.90
1 LEN ($104.20 per LEN)
+ −
30 Days Return Electricians Unlock Trade Access
Legrand cable duct features ABS, 25x60mm, and self-extinguishing. Ideal for switchboard and panel cable management.
Technical Specifications
  • Material: Acrylonitrile Butadiene Styrene (ABS)
  • Cross-section: 25x60 mm
  • Usable cross section: 1159 mm²
  • Length: 2000 mm
  • Distance of slots: 6.5 mm
  • Slit width: 6 mm
  • Type of side wall: Hole-/slot punching
  • Halogen free: Yes
  • Self-extinguishing: Yes
  • Flexible: No
  • Type of fastening: Bottom perforation
  • With cover: Yes
  • Colour: Grey
  • Operating temperature: -5 to 60 °C
  • Storage temperature: -25 to 60 °C
  • Dimensions (H x L x W): 60mm x 2000mm x 25mm
  • Weight: 0.5 kg
Key Features
  • Halogen free, does not release halogenated gases in case of fire
  • Hand-splitting cable duct with side and bottom cut-outs for dust-free and smooth cutting
  • Retaining bossage keeps wires at the bottom and prevents pulling out during wiring
  • Allows wiring on two levels
  • T-junction capability between vertical and horizontal ducts without obstacles
  • Cover installs easily by frontal-clicking or rotation without tools
  • Ribbing on edges for label alignment
  • Self-extinguishing material
Professional Installation Requirements
  • Professional installation recommended to ensure compliance with building codes and secure cable management.
Applications
  • Installations in buildings receiving public access
  • Rolling stock such as trains and subways
  • IT rooms and data centers
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Halogen free material reduces toxic gas emissions in case of fire
  • Durable ABS construction extends product life and reduces waste
Warranty Information

Standard manufacturer warranty applies; please refer to Legrand for specific warranty details.

Available Now

Legrand Halogen Free Blue Cable Duct 25x60 is available for immediate purchase, ideal for public buildings, transport, and IT infrastructure applications.

F02998EN-00 (F02998EN-00.pdf, 2,363 Kb) [Download]

F02998FR-00 (F02998FR-00.pdf, 2,351 Kb) [Download]

ex223001_0481 (ex223001_0481.pdf, 180 Kb) [Download]

ex223001_0479 (ex223001_0479.pdf, 66 Kb) [Download]
