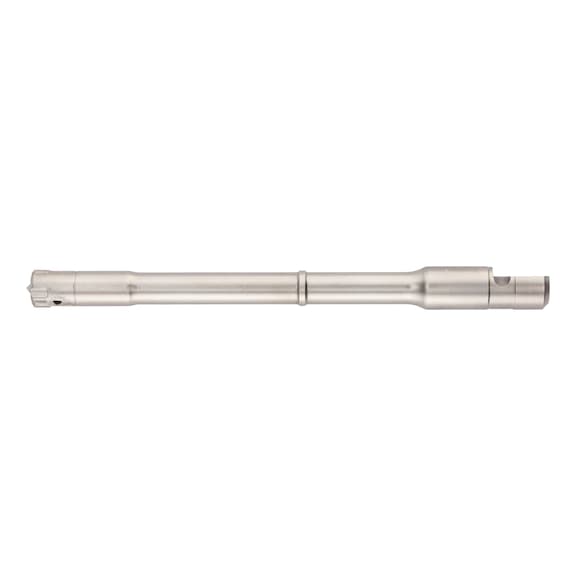

Hammer Drill Bit 10mm | Dust Extraction | 4 Cutting Edges | Bayonet Connection | by Wurth
The Hammer Drill Bit 10mm is designed for dust-free drilling, featuring a unique dust extraction system that protects users and extends tool life. With four cutting edges for precise drilling and a bayonet-click connection for easy attachment, this bit is perfect for construction sites and applications requiring clean, efficient drilling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hammer Drill Bit 10mm | Dust Extraction | 4 Cutting Edges | Bayonet Connection | by Wurth
Brand: Wurth
SKU: 648041015
Alternatively Known As: Hammer Drill Bit 10mm, Modular Drill Bit, Dust Extraction Drill Bit, Bayonet Drill Bit
Technical Specifications
- Diameter: 10 mm
- Length: 150 mm
- Working length: 100 mm
- Number of cutting edges: 4
- Tool holding device: Screw-in thread
- Drilling speed rating: 3/4
- Smoothness of running rating: 4/4
- Accuracy rating: 4/4
- Reinforcement strength rating: 3/4
- Service life rating: 4/4
- Dimensions (H x L x W): 10mm x 150mm x 10mm
- Weight: 0.3 kg
Key Features
- Dust-free drilling with immediate dust extraction from drill hole
- Protects user from health risks and extends tool service life
- No need for subsequent borehole cleaning
- Significantly reduces dust formation on construction sites
- Symmetrical head with four cutting edges for precise drilling
- Bayonet-click connection for easy attachment
- Drill depth indicator for accurate drilling depth
- Very good compatibility with reinforcements when used with suction unit
Professional Installation Requirements
- Use only with compatible suction unit (art. 0648 040 000) and dust class M vacuums. Drilling through iron reinforcements requires permission from a structural engineer. Professional handling recommended.
Applications
- Drilling in construction sites with dust extraction
- Use with dust class M vacuums for dust-free drilling
- Suitable for drilling through reinforcements with structural engineer approval
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Dust extraction reduces airborne particles, improving air quality on site
- Minimizes environmental dust pollution during drilling operations
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Modular Hammer Drill Bit 10mm is available for immediate purchase, ideal for construction and machining applications requiring dust-free and precise drilling.
