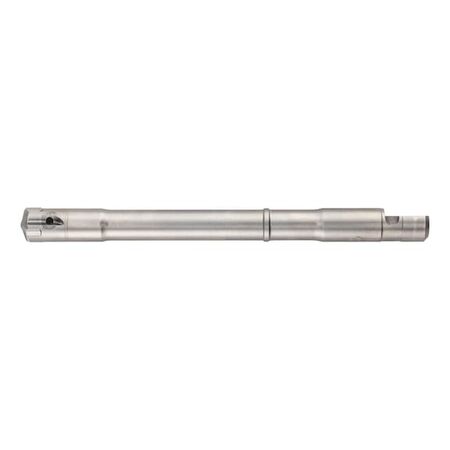

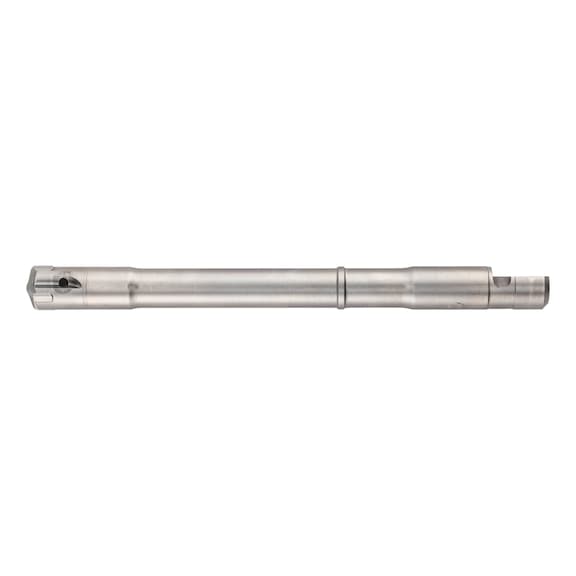

Hammer Drill Bit 12mm | Dust Extraction | 4 Cutting Edges | Bayonet Connection | by Wurth
The Hammer Drill Bit 12mm is designed for dust-free drilling, featuring a unique dust extraction system that protects users and extends tool life. With four cutting edges and a bayonet-click connection, this bit ensures precise drilling in reinforced materials, making it ideal for professional construction applications. Perfect for use with dust class M vacuums, it minimizes airborne particles and enhances air quality on site.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hammer Drill Bit 12mm | Dust Extraction | 4 Cutting Edges | Bayonet Connection | by Wurth
Brand: Wurth
SKU: 648041215
Alternatively Known As: Hammer Drill Bit 12mm, Modular Drill Bit, Dust Extraction Drill Bit, Bayonet Drill Bit
Technical Specifications
- Diameter: 12 mm
- Length: 150 mm
- Working length: 100 mm
- Number of cutting edges: 4
- Tool holding device: Screw-in thread
- Drilling speed rating: 3/4
- Smoothness of running rating: 4/4
- Accuracy rating: 4/4
- Reinforcement strength rating: 3/4
- Service life rating: 4/4
- Dimensions (H x L x W): 12mm x 150mm x 12mm
- Weight: 0.3 kg
Key Features
- Dust-free drilling with immediate dust extraction from the drill hole
- Protects user from health risks and extends tool service life
- No need for subsequent borehole cleaning
- Significantly reduces dust formation on construction sites
- Symmetrical head with four cutting edges for precise drilling
- Bayonet-click connection for easy attachment
- Drill depth indicator for accurate drilling
- Very good compatibility with reinforcements when used with appropriate suction unit
Professional Installation Requirements
- Use only with compatible suction unit (art. 0648 040 000) and dust class M vacuums. Professional use recommended with structural engineer approval for drilling reinforcements.
Applications
- Drilling in construction sites with dust extraction
- Use with dust class M vacuums and suction units
- Suitable for drilling through reinforcements with structural engineer approval
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Dust extraction reduces airborne particles, improving air quality on site
- Minimizes environmental dust pollution
- Extends tool life reducing waste and resource consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Modular Hammer Drill Bit 12mm is available for immediate purchase, ideal for professional construction and machining applications requiring dust-free drilling.
