Hammer-On Flange Clip 14-20mm | Spring Steel | 900 N Load Capacity | Quick Installation by Cabac

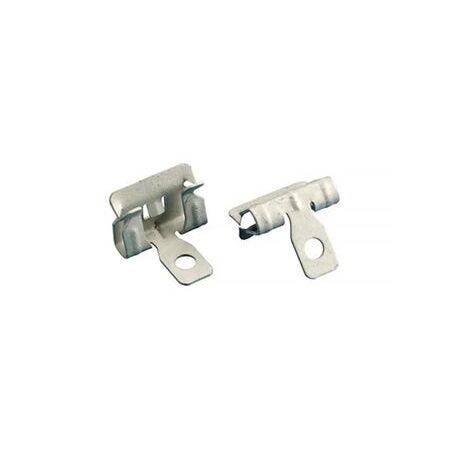

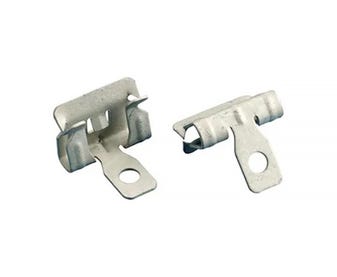

The CADDY Hammer-On Flange Clip 14-20mm by Cabac is a spring steel clip designed for quick and secure attachment of wires, hooks, and chains to beam flanges, supporting loads up to 91 kg.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CADDY hammer-on flange clip 14-20mm
Brand: Cabac
SKU: 4H912
Alternatively Known As: Beam Flange Clip, Hammer-On Beam Clip, Flange Attachment Clip, CADDY Beam Clip
Technical Specifications
- Material: Spring Steel
- Finish: nVent CADDY Armour
- Flange Thickness Compatibility: 14-20mm
- Hole Size: 7.1 mm
- Static Load Capacity: 900 N (approx. 91 kg)
- Box Quantity: 100
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Fits beam flange thickness of 14-20mm
- Provides attachment for wire, S-hooks, chain, nVent CADDY Speed Link or other assemblies
- Installs quickly with just a hammer
- Supports static load up to 900 N (approximately 91 kg)
- 7.1 mm hole size for versatile attachment
Professional Installation Requirements
- Installation requires only a hammer; no specialized tools or professional installation necessary.
Applications
- Securing S-hooks, Speedlink wires, chains or other attachments to beam flanges
- Wire suspension systems in construction and industrial settings
- Supporting assemblies on beam flanges and profiles
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable spring steel construction reduces need for frequent replacements
- Enables secure installations that prevent material waste and damage
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac for specific warranty details.
Available Now
The CADDY Hammer-On Flange Clip 14-20mm is available for immediate purchase, ideal for construction and industrial wire suspension applications.
