Hammer-On Flange Clip 8-14mm | Spring Steel | 900 N Load Capacity | nVent CADDY Armour by Cabac

BRAND: CABAC
SKU: 4H58
$1.40 List price: $1.70
+ −
30 Days Return Delivery Options

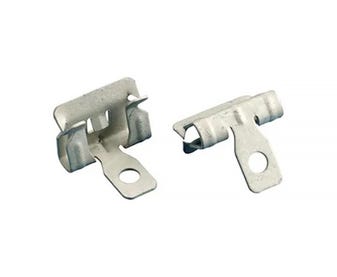

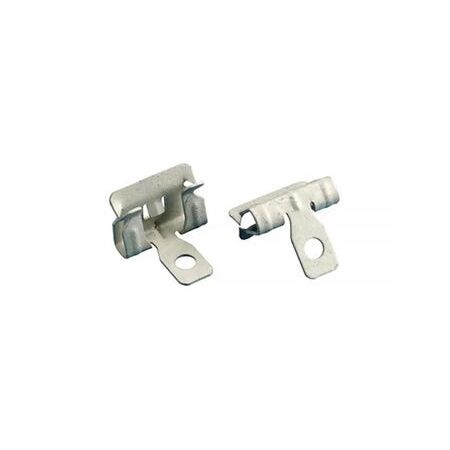

The CADDY Hammer-On Flange Clip 8-14mm by Cabac is a durable spring steel clip designed for quick attachment of wires, chains, and hooks to beam flanges, supporting loads up to 91 kg with easy hammer installation.

Product Name/Title: CADDY hammer-on flange clip 8-14mm

Brand: Cabac

SKU: 4H58

Alternatively Known As: Beam Flange Clip, Hammer-On Beam Clip, Flange Attachment Clip, Wire Suspension Clip

Technical Specifications
  • Material: Spring Steel
  • Finish: nVent CADDY Armour
  • Flange Thickness Compatibility: 8 – 14 mm
  • Hole Size: 7.1 mm
  • Static Load Capacity: 900 N (91 kg)
  • Box Quantity: 100
  • Dimensions (H x L x W): 20mm x 50mm x 50mm
  • Weight: 0.05 kg
Key Features
  • Fits beam flange thickness of 8-14mm
  • Provides attachment for wire, S-hooks, chain, Speed Link or other assemblies
  • Fits most beams
  • Installs quickly with just a hammer
  • Supports static load up to 900 N (91 kg)
  • 7.1 mm hole size for versatile attachments
  • Durable spring steel material with nVent CADDY Armour finish
Professional Installation Requirements
  • Installation requires only a hammer; no specialized tools needed. Recommended for use by trained personnel to ensure secure attachment.
Applications
  • Securing S-hooks, Speedlink wires, chains to beam flanges
  • Wire suspension systems in construction and industrial settings
  • Attachment to flanges and profiles for support hardware
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable construction reduces need for frequent replacements
  • Enables secure installations that prevent material waste
Warranty Information

Standard manufacturer warranty against defects applies.

Available Now

The CADDY Hammer-On Flange Clip 8-14mm is available for immediate purchase, ideal for construction and industrial wire suspension applications.
