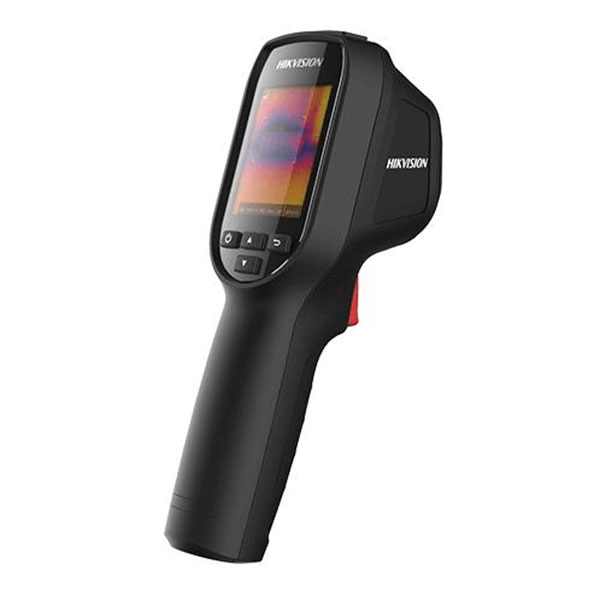

Handheld Thermal Camera Hikvision
Hikvision handheld thermal camera features handheld thermal imaging. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision Handheld Thermographic Camera, Portable Thermal Imaging Camera, Infrared Inspection Camera
Technical Specifications
- Thermal Resolution: 160 × 120 pixels
- Sensor: Uncooled focal plane array, 17 μm pixel pitch
- Spectral Response: 8–14 μm
- Thermal Sensitivity: Less than 40 mK
- Thermal Lens: 3.1 mm
- Field of View: 37.2° × 50°
- Temperature Measurement Range: -20 °C to 550 °C
- Temperature Accuracy: Maximum ±2 °C or ±2%
- Thermometry: Maximum, minimum and centre temperature points
- Display: 2.4-inch LCD, 320 × 240 resolution
- Storage: Replaceable memory card, 8 GB included, up to 128 GB supported
- Battery: Rechargeable lithium battery
- Battery Runtime: Up to 8 hours continuous operation
- Interface: Micro USB
- Protection Rating: IP54
- Drop Resistance: 2 m
- Operating Temperature: -10 °C to 50 °C
- Dimensions (H x L x W): 59mm x 196mm x 117mm
- Weight: 0.35 kg
Key Features
- Handheld thermal imaging for CCTV, security and inspection work
- Measures surface temperatures from -20 °C to 550 °C
- 160 × 120 thermal detector with less than 40 mK sensitivity
- Laser pointer assists with identifying the measurement target
- Three-point thermometry for maximum, minimum and centre temperatures
- IP54-rated housing for protection against dust ingress and water splashes
- 2 m drop-tested construction
- MicroSD storage for thermal image capture
- Rechargeable battery with up to 8 hours of continuous operation
Applications
- CCTV and security system installation inspections
- Electrical switchboard and equipment checks
- HVAC and refrigeration fault finding
- Building maintenance and preventative inspections
- Industrial machinery and component temperature checks
- Identifying heat loss, overheating connections and abnormal thermal patterns
Standards & Compliance
- AS/NZS 61010.1 may be applicable as the general safety standard for electrical measurement equipment; product-specific Australian conformity and RCM documentation should be confirmed before supply.
Environmental Benefits
- Rechargeable lithium battery reduces reliance on disposable batteries during repeated inspections
- Thermal inspection can support preventative maintenance and extend the service life of electrical, HVAC and mechanical equipment
- Replaceable memory storage and durable, drop-tested construction may reduce premature product replacement
Warranty Information
Hikvision products supplied through authorised Australian distribution channels are generally covered by a 3-year manufacturer warranty from the date of purchase; confirm coverage for the specific model and sales channel.
Available Now
Available through Hikvision and authorised Australian security, CCTV and trade-equipment distributors.
