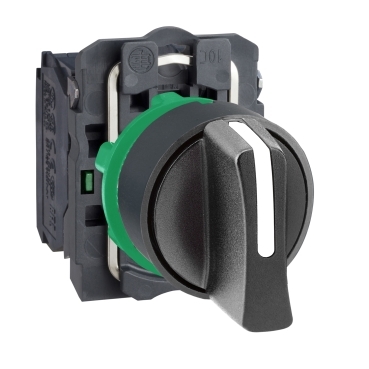

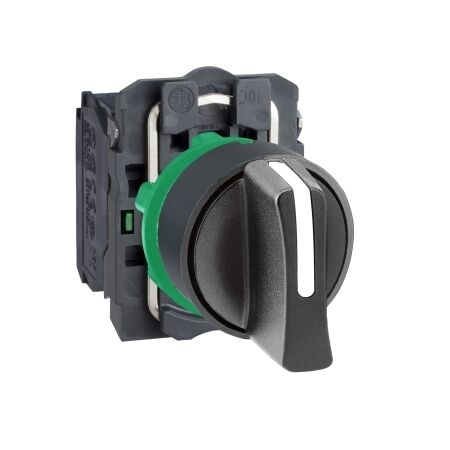

HANGSELL Selector Switch 3 Pos | 3-Position Control | IP66 Rated | 600V Insulation | @Pack of 1 | by Clipsal
The HANGSELL Selector Switch 3 Pos is designed for versatile control applications in industrial settings. With a robust construction and an IP66 rating, it ensures reliable operation in harsh environments. Ideal for machinery operation stations and automation systems, this switch features a standard 22mm mounting diameter for easy installation and clear position indication for operator safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HANGSELL Selector Switch 3 Pos | 3-Position Control | IP66 Rated | 600V Insulation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMXB5AD33
Alternatively Known As: 3 Position Selector Switch, Clipsal Selector Switch, SCHMXB5AD33, Industrial Selector Switch, 3 Way Rotary Switch
Technical Specifications
- Switch Type: 3-position selector
- Mounting Diameter: 22mm
- Contact Configuration: 1NO/1NC (varies by configuration)
- Rated Insulation Voltage: 600V
- Mechanical Durability: 1,000,000 cycles
- Front Bezel Material: Plastic
- Operating Temperature: -25°C to +70°C
- IP Rating: IP66 (front face)
- Dimensions (H x L x W): 50mm x 30mm x 30mm
- Weight: 0.12 kg
Key Features
- 3-position selector switch for versatile control applications
- Robust construction for industrial environments
- Easy installation with standard 22mm mounting diameter
- Clear position indication for operator safety
Professional Installation Requirements
- Installation by a licensed electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery operation stations
- Automation systems
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste.
- Reliable operation minimizes downtime and energy waste in industrial settings.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal HANGSELL Selector Switch 3 Position SCHMXB5AD33 is available for immediate purchase. Ideal for industrial control panels, automation systems, and machinery operation stations.
