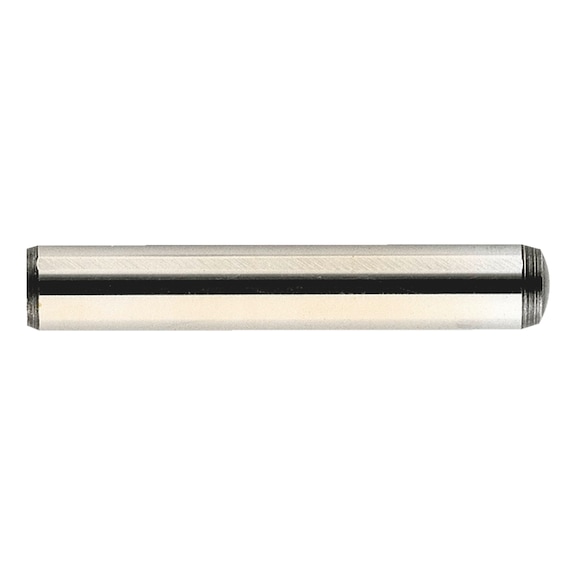

Hardened Steel Shape D Fastener | M3 Threaded | 60 HRC Durability | Plain Surface | by Wurth
The Hardened Steel Shape D Fastener is designed for robust fastening in industrial and mechanical applications. With a nominal diameter of 4 mm and a length of 14 mm, this fastener features a strong M3 thread and is hardened to 60 ± 2 HRC for exceptional durability. RoHS-compliant, it ensures reduced hazardous substances, making it ideal for general machine element fastening and mechanical engineering components.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hardened Steel Shape D Fastener | M3 Threaded | 60 HRC Durability | Plain Surface | by Wurth
Brand: Wurth
SKU: 2470414
Alternatively Known As: Hardened steel fastener, Shape D fastener, DIN 7979 fastener, M3 threaded fastener
Technical Specifications
- Nominal diameter (d1): 4 mm
- Length (l1): 14 mm
- Connection thread (d2): M3
- Thread length (metric thread) (t1): 4.5 mm
- Hole depth (t2): 7 mm
- Standards: DIN 7979
- Material: Steel
- Surface: Plain
- Design: Hardened
- Rockwell hardness, HRC: 60 HRC
- Tolerance class: m6
- Form: D
- RoHS-compliant: Yes
- Dimensions (H x L x W): 14mm x 14mm x 4mm
- Weight: 0.1 kg
Key Features
- Made from steel with 600 N/mm² strength
- Hardened to 60 ± 2 HRC for durability
- Plain surface finish
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or engineer recommended to ensure proper fit and function.
Applications
- General machine element fastening
- Industrial machinery assembly
- Mechanical engineering components
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Hardened Steel Shape D Fastener 4mm x 14mm is available for immediate purchase, ideal for industrial and mechanical fastening applications.
