Hardware Kit | microScan3 Core EFI-pro Scanner | Automatic Robot Restart | EtherNet/IP™ Communication | by SICK

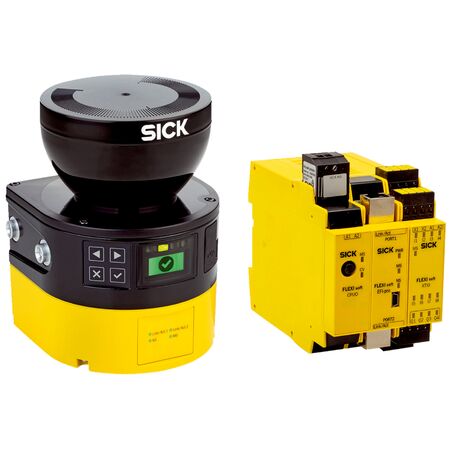

The Hardware Kit features the microScan3 Core EFI-pro safety laser scanner with a 5.5 m protective field range, designed for seamless integration with FANUC R-30iB Plus and KUKA KR C5 robot controllers. Ideal for hazardous area protection in industrial automation, this kit ensures compliance with safety standards while enhancing workplace safety and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Variant: sBot Speed CIP
- Product type: Hardware
- Robot controller compatibility: FANUC R-30iB Plus, KUKA KR C5
- Stopping process: With speed reduction
- Robot restart: Automatic
- Communication interface: EtherNet/IP™ CIP Safety™
- Safety laser scanner: microScan3 Core EFI-pro
- Protective field range: 5.5 m
- Ambient operating temperature: –10 °C to +50 °C
- Storage temperature: –25 °C to +70 °C
- Air humidity: 90% at 50 °C (EN 61131-2)
- Safety controller included: Flexi Soft programmable
- Supply voltage: 24 V DC (16.8 V DC to 30 V DC)
- Performance level: PL d (ISO 13849-1)
- Items supplied: microScan3 Core EFI-pro scanner, Flexi Soft main module FX3-CPU0, FX3-MPL0, system plug FX3-XTIO, I/O module Flexi-Soft-Gateway EFI-Pro FX3-GEPR0, documentation
- Dimensions (H x L x W): 150mm x 300mm x 200mm
- Weight: 2.5 kg
Key Features
- Includes microScan3 Core EFI-pro safety laser scanner with 5.5 m protective field range
- Compatible with FANUC R-30iB Plus and KUKA KR C5 robot controllers
- Automatic robot restart with speed reduction stopping process
- Programmable Flexi Soft safety controller included
- Communication via EtherNet/IP™ CIP Safety™ interface
- Safety outputs via network default to logic 0 in fault conditions
- Performance level PL d (ISO 13849-1) compliant
Professional Installation Requirements
- Installation and configuration should be performed by qualified safety system engineers or certified technicians to ensure compliance with safety standards and proper integration with robot controllers.
Applications
- Hazardous area protection in industrial automation
- Robot safety control with FANUC R-30iB Plus and KUKA KR C5 controllers
- Safety monitoring in manufacturing and processing plants
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing risk of accidents and associated environmental hazards
- Energy efficient safety components reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK sBot Speed CIP Hardware Kit is available for immediate purchase, ideal for industrial safety and robot integration applications.
