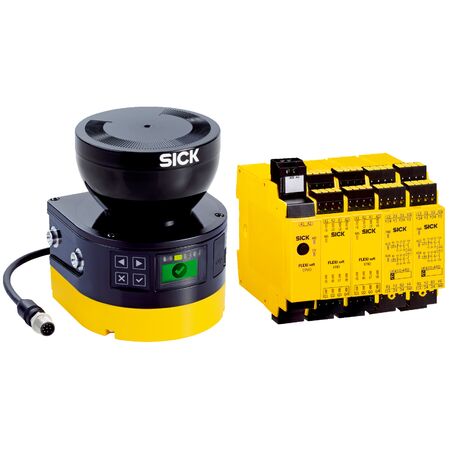

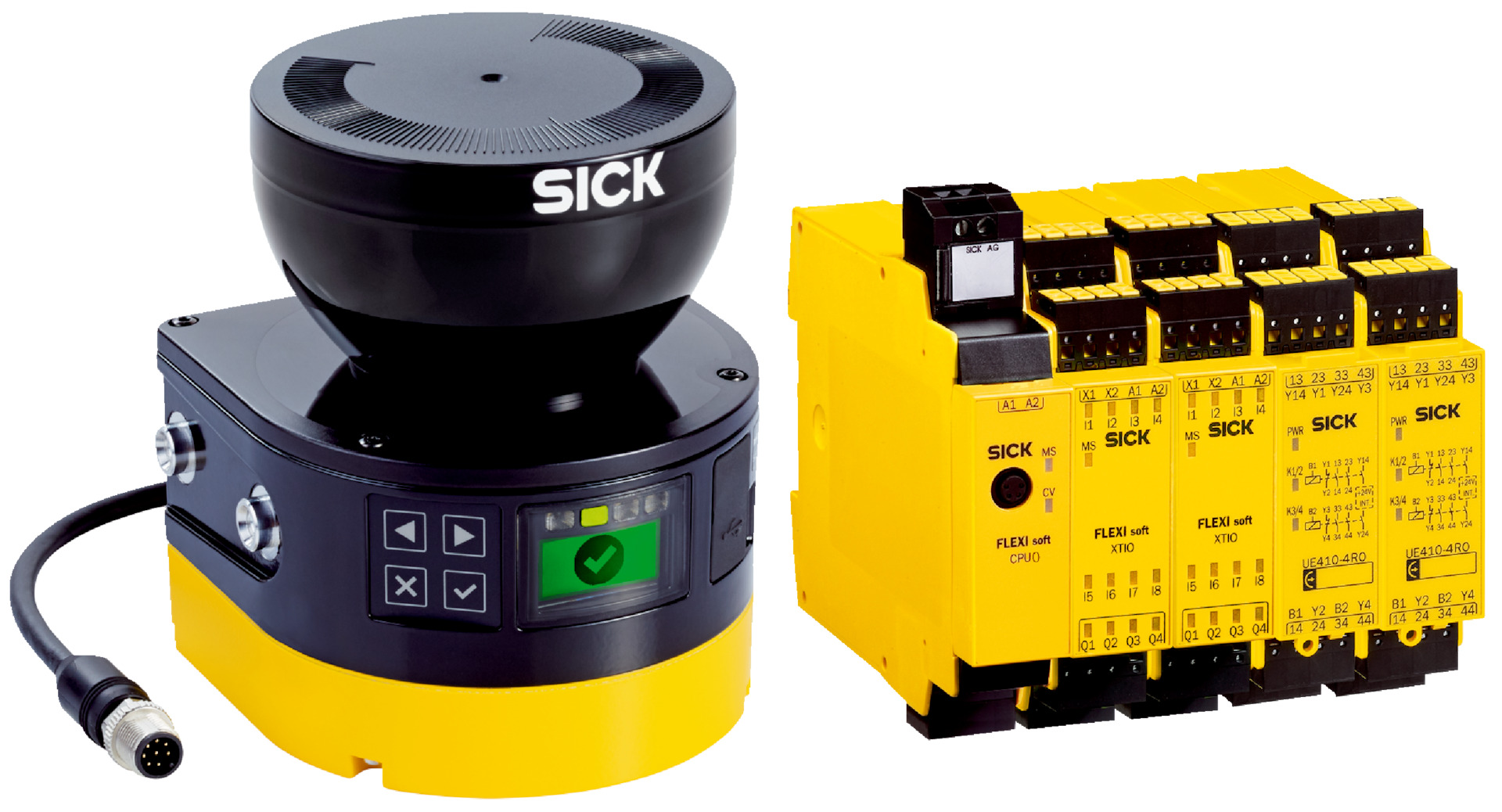

Hardware Kit | Compatible with Yaskawa DX200 & YRC1000 | Speed Reduction & Automatic Restart | by SICK
The Hardware Kit is designed for Yaskawa robot controllers, ensuring safe operation with features like speed reduction and automatic restart. Ideal for industrial robot safety and control systems, it includes a microScan3 Core I/O safety laser scanner with a 5.5 m protective field range, enhancing safety in hazardous manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Variant: sBot Speed – YA
- Product type: Hardware
- Robot controller compatibility: Yaskawa DX200, YRC1000, YRC1000micro
- Stopping process: Speed reduction
- Robot restart: Automatic
- Communication interface: Discrete I/Os
- Safety laser scanner: microScan3 Core I/O
- Protective field range: 5.5 m
- Safety controller: Flexi Soft programmable
- Supply voltage: 24 V DC (16.8 V DC to 28.8 V DC)
- Performance level: PL d (ISO 13849-1)
- Ambient operating temperature: -10 °C to +50 °C
- Storage temperature: -20 °C to +50 °C
- Air humidity: 90% at 50 °C (EN 61131-2)
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 2.5 kg
Key Features
- Compatible with Yaskawa robot controllers DX200, YRC1000, YRC1000micro
- Safe stopping process with speed reduction
- Automatic robot restart
- Discrete I/O communication interface
- Safety-related semiconductor outputs default to OFF state on fault
- Includes microScan3 Core I/O safety laser scanner with 5.5 m protective field range
- Programmable Flexi Soft safety controller included
- Performance level PL d (ISO 13849-1)
- Operating temperature range from -10 °C to +50 °C
- Storage temperature range from -20 °C to +50 °C
- Supports up to 90% air humidity at 50 °C (EN 61131-2)
- Includes Flexi Soft main module FX3-CPU0, FX3-MPL0, system plug FX3-XTIO, I/O module UE410-4RO4, relay module, and documentation
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals experienced with industrial robot safety systems and programmable safety controllers.
Applications
- Industrial robot safety and control systems
- Hazardous area protection in manufacturing environments
- Integration with Yaskawa robot controllers DX200, YRC1000, YRC1000micro
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances operational safety reducing risk of accidents and environmental hazards
- Energy-efficient safety components reduce power consumption during operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK Hardware Kit sBot Speed – YA is available for immediate purchase, ideal for industrial robot safety and hazardous area protection applications.
