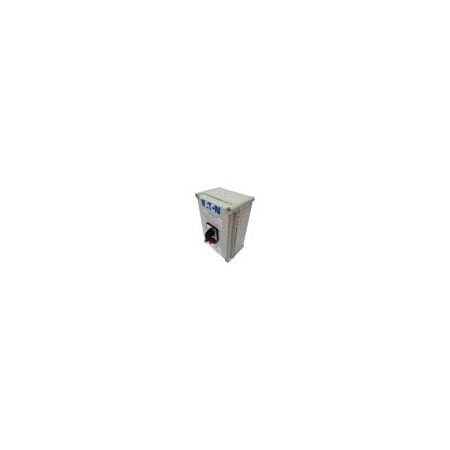

Hardwired External Bypass Switch | 1-6kVA | Voltage-Free Relay Interlock | Silver Finish by Eaton
This hardwired external bypass switch supports 1-6kVA systems with a voltage-free relay interlock—ideal for uninterrupted power supply maintenance. Built for industrial and commercial applications, it ensures seamless power management with a sleek silver finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hardwired External Bypass Switch | 1-6kVA | Voltage-Free Relay Interlock | Silver Finish by Eaton
Brand: Eaton
SKU: 6000MBS1
Alternatively Known As: Eaton Maintenance Bypass Enclosure, Eaton UPS Bypass Switch, Eaton External Bypass Panel
Technical Specifications
- Product Name: Eaton 9SX Maintenance Bypass Enclosure Wraparound Single Input
- Input nominal voltage: 230V default (220/230/240V)
- Nominal frequency: 50-60 Hz
- Input frequency range: 50Hz-60Hz
- Number of outputs hardwired: 1
- Output nominal voltage: 230V default (220/230/240V)
- Electric current - max: 32A
- Feed type: 1
- Transfer time: 0 ms
- Communication: Voltage-free relay interlock
- Potential free switch contact: Yes
- Altitude: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Input voltage range: 192-264 V
- Output frequency: 50-60 Hz
- Output voltage range: 192-264 V
- Phase (input): Single-phase
- Phase (output): Single-phase
- Construction type: Free standing model
- Color: Silver
- Auto shutdown function: No
- Dimensions (H x L x W): 278mm x 171mm x 190mm
- Weight: 1.5 kg
Key Features
- Hardwired/fixed connection with max 6mm2 cable
- Single-phase input and output
- Voltage-free relay interlock for communication
- Potential free switch contact included
- Instantaneous transfer time of 0 ms
- Free standing model with silver finish
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical standards and safety.
Applications
- Used with Eaton 9SX and 9130 UPS systems
- Industrial and commercial power management
- Maintenance bypass for uninterrupted power supply systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables maintenance without power interruption, reducing downtime and energy waste
- Supports efficient power management and system reliability
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton 1-6kVA Hardwired Interlocked External Bypass is available now for immediate purchase. Ideal for industrial and commercial UPS maintenance applications.
