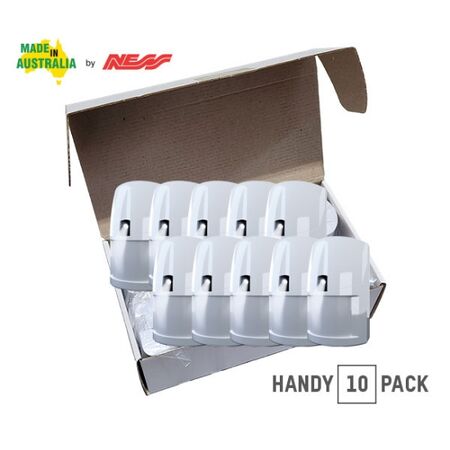

Hardwired PIR Motion Detector 10 Pack | 15m x 15m Coverage | Pet Aware & Standard Modes | LUX by Ness

BRAND: Ness
SKU: 106-173-10
$557.70 List price: $723.90
+
Hardwired PIR motion detector with 15m x 15m wide-angle coverage and selectable pet aware and standard modes—ideal for homes and commercial spaces. Built for enhanced security, with adjustable digital pulse count and high immunity to R.F. and E.S.D.

Product Name/Title: Ness LUX Hardwired PIR 10 Pack

Brand: Ness

SKU: 106-173-10

Alternatively Known As: Ness PIR Sensor, Hardwired Motion Detector, LUX PIR Sensor

Technical Specifications
  • Quad element pyro sensor
  • 15m x 15m wide-angle coverage
  • Selectable Standard and Pet Aware modes
  • Adjustable Digital Pulse Count
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • Capsule design with sealed electronics
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Quad element pyro sensor with 15m x 15m wide-angle coverage
  • Look down ‘Creep Zone’
  • Selectable Standard and Pet Aware modes
  • Adjustable sensor mask for No Creep and Pet modes
  • Supports Home Automation with fast response output
  • White LED motion-activated night-light
  • Adjustable Digital Pulse Count
  • Adjustable Digital Range
  • High R.F. and E.S.D. immunity
  • High white light immunity
  • High quality patented Fresnel lens
  • Capsule design with sealed electronics
  • Front cover tamper protection
  • Totally silent solid state relay with high immunity to magnetic fields
  • Optional mounting bracket available
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Any indoor or outdoor location requiring motion detection
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Energy-efficient design reduces power consumption and enhances security.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Ness LUX Hardwired PIR 10 Pack is available now for immediate purchase. Ideal for residential and commercial spaces, combining advanced technology with reliable performance.

Brochure Sheet (Ness_LUX-HW_brochure.pdf, 953 Kb) [Download]

Sheet (890-467_Lux_hardwire_manual_rev1.2.pdf, 341 Kb) [Download]
