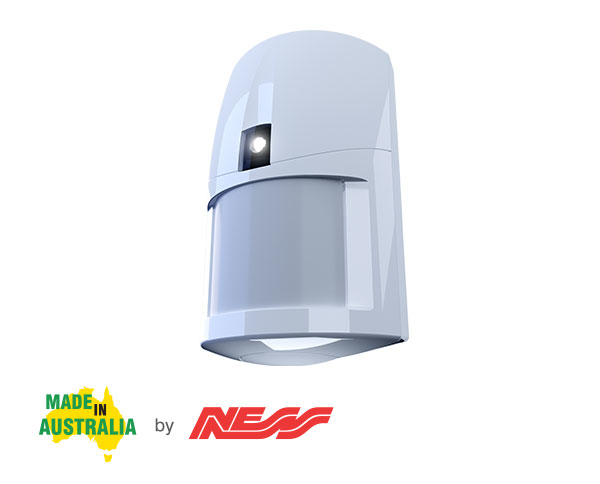

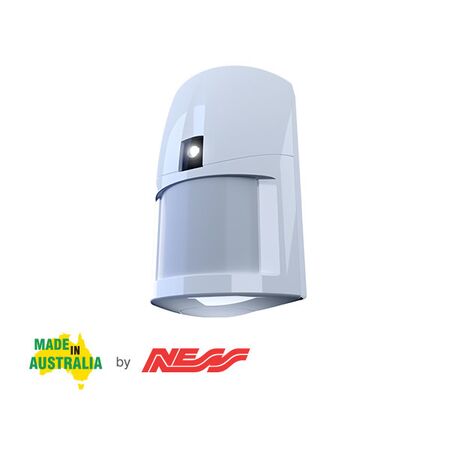

Hardwired PIR Motion Detector 15m x 15m Pet Aware Night-Light Ness
Ness hardwired PIR motion detector features 15m x 15m coverage, pet aware mode and LED night-light. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness LUX Hardwired PIR, Ness 106-173 LUX HW PIR, Quad PIR Motion Sensor, Pet Aware Security Detector
Technical Specifications
- Detection Coverage: Up to 15m x 15m at 90°
- Sensor: Quad-element pyroelectric PIR
- Detection Zones: 20 quad-element zones plus vertical anti-creep zone
- Range: Selectable 15m maximum or 12m maximum
- Pulse Count: Selectable 1–2 or 3–4 pulses
- Pet Immunity: Single pet up to 18kg or multiple pets up to 10kg total
- Operating Voltage: 10–15V DC
- Current Draw: 10mA
- Alarm Output: Silent solid-state relay with normally closed contacts, 100mA maximum
- Tamper Output: Normally closed switch
- Night-Light: White LED with adjustable light/dark threshold and external control
- Alarm Period: 2 seconds
- Warm-Up Duration: 30 seconds
- Operating Temperature: 0°C to 50°C
- Mounting Height: 2.1m to 2.3m
- Compatibility: Hardwired alarm control panels
- Dimensions (H x L x W): 112mm x 48mm x 72mm
- Weight: 0.15 kg
Key Features
- 15m x 15m wide-angle PIR coverage
- Selectable standard and Pet Aware modes
- Adjustable sensor mask for normal, no-creep and pet configurations
- White LED motion-activated night-light
- Quad-element pyro sensor for enhanced detection
- Adjustable digital pulse count and detection range
- Look-down vertical anti-creep zone
- High RF, ESD and white-light immunity
- Sealed capsule design protects the electronics
- Front-cover tamper protection
- Fast-response and sensitivity outputs for automation applications
- Optional wall or ceiling mounting bracket available
Professional Installation Requirements
- Installation and connection should be completed by a suitably qualified security installer in accordance with the manufacturer’s instructions and AS/NZS 2201.1:2007. The detector operates at extra-low voltage, but it must be correctly wired and commissioned as part of the alarm system.
Applications
- Residential intruder alarm systems
- Commercial security alarm systems
- Pet-aware indoor motion detection
- Home automation and lighting-control applications
- Hardwired alarm panels requiring a 10–15V DC PIR detector
Standards & Compliance
- AS/NZS 2201.1:2007 — applicable to the design, installation, commissioning and maintenance of intruder alarm systems incorporating detection devices; individual product certification is not stated by the manufacturer.
Environmental Benefits
- Low 10mA operating current helps minimise energy consumption within continuously powered alarm systems
- Sealed electronics and durable solid-state switching can support extended service life and reduce replacement waste
- LED night-light technology provides illumination with low electrical power demand
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions. ([ness.com.au](https://ness.com.au/product-warranty?utm_source=openai))
Available Now
Available through Ness Corporation and authorised Australian security and alarm-system distributors.
