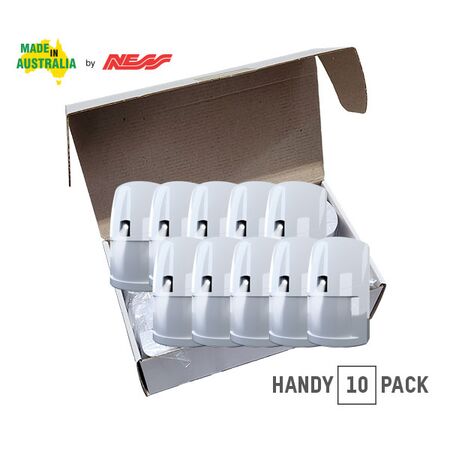

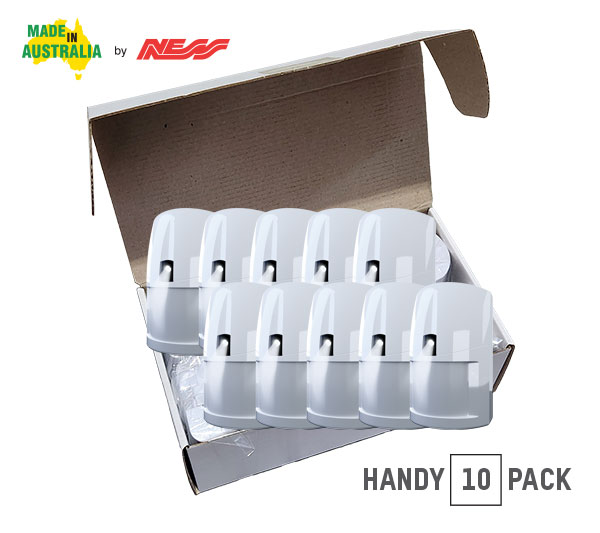

Hardwired PIR Motion Detector Pack of 10 15m x 15m Pet Aware LUX Ness
Ness hardwired PIR motion detector pack of 10 features 15m x 15m coverage with pet aware and standard modes. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness LUX Wired PIR, Hardwired Passive Infrared Detector, Pet Aware PIR Motion Sensor
Technical Specifications
- Pack Quantity: 10 detectors
- Detection Technology: Passive infrared pyroelectric sensor
- Coverage: Up to 15m x 15m at 90°
- Detection Range: Selectable 12m or 15m maximum
- Detection Zones: 20 dual-element zones
- Pet Immunity: Single pet up to 18kg or multiple pets up to 10kg total
- Operating Voltage: 10–15V DC
- Current Draw: 10mA
- Alarm Period: 2 seconds
- Mounting Height: 2.1–2.3m
- Operating Environment: Indoor use, 0–50°C
- Outputs: Solid-state alarm relay, tamper output, fast-response and sensitivity outputs
- Dimensions (H x L x W): 112mm x 48mm x 72mm
- Weight: 1.5 kg
Key Features
- Selectable Standard, No Creep and Pet Aware modes
- 15m x 15m wide-angle detection coverage
- Adjustable digital range and pulse count
- Built-in white LED motion-activated night-light
- Blue alarm indication LED
- Look-down creep zone with adjustable sensor masking
- High RF, ESD and white-light immunity
- Front-cover tamper protection
- Sealed capsule design protects the electronics
- Compatible with hardwired alarm control panels
- Optional Quantum swivel mounting bracket available
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or alarm technician. The detector requires low-voltage hardwiring to a compatible alarm control panel and should be installed, commissioned and tested in accordance with AS/NZS 2201.1.
Applications
- Residential intruder alarm systems
- Commercial security alarm systems
- Indoor movement detection
- Pet-aware alarm zones
- Home automation systems requiring a fast-response motion output
Standards & Compliance
- AS/NZS 2201.1:2007 for intruder alarm systems installed at client premises, including detection devices, installation, commissioning and maintenance
Environmental Benefits
- Low 10mA current draw helps minimise standby energy consumption
- Long-life hardwired design can reduce battery waste and replacement frequency
- Electronic components and plastic housing should be disposed of through appropriate electrical and electronic recycling channels
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms and exclusions.
Available Now
Available through Ness and authorised Australian security equipment distributors.
