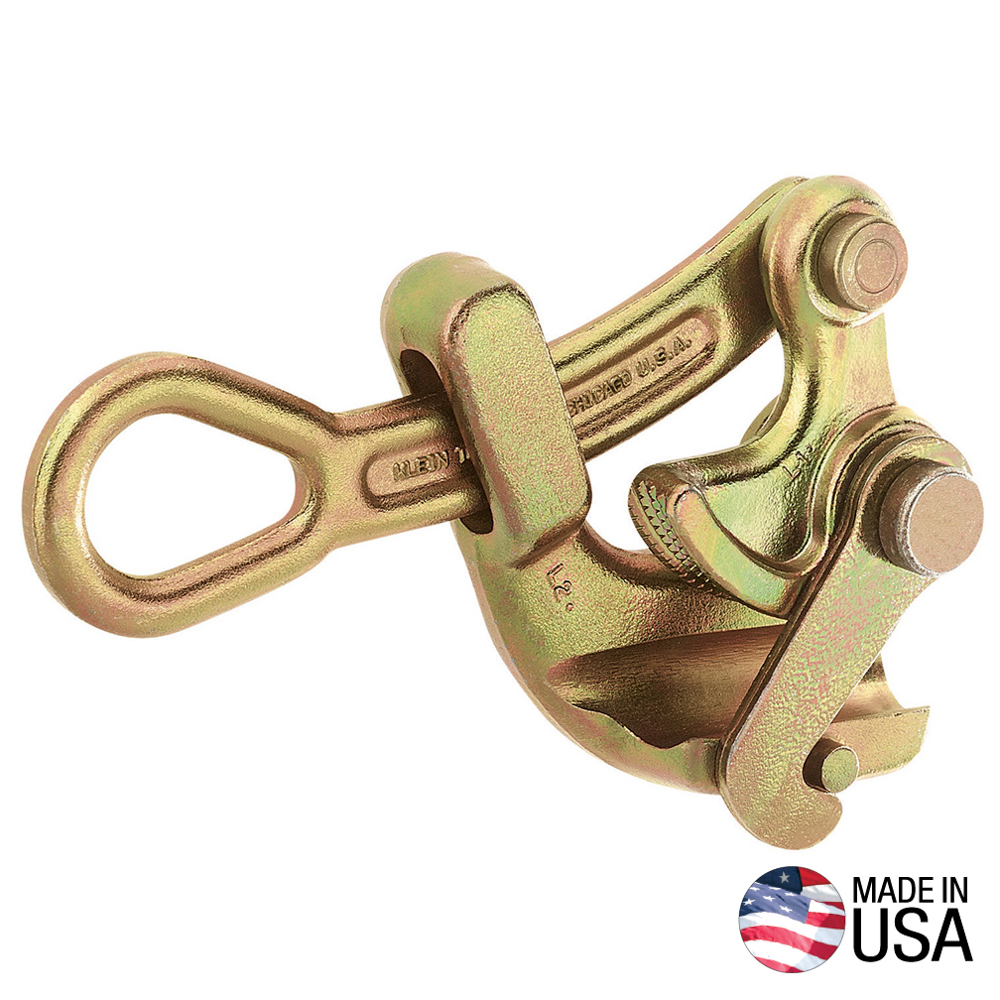

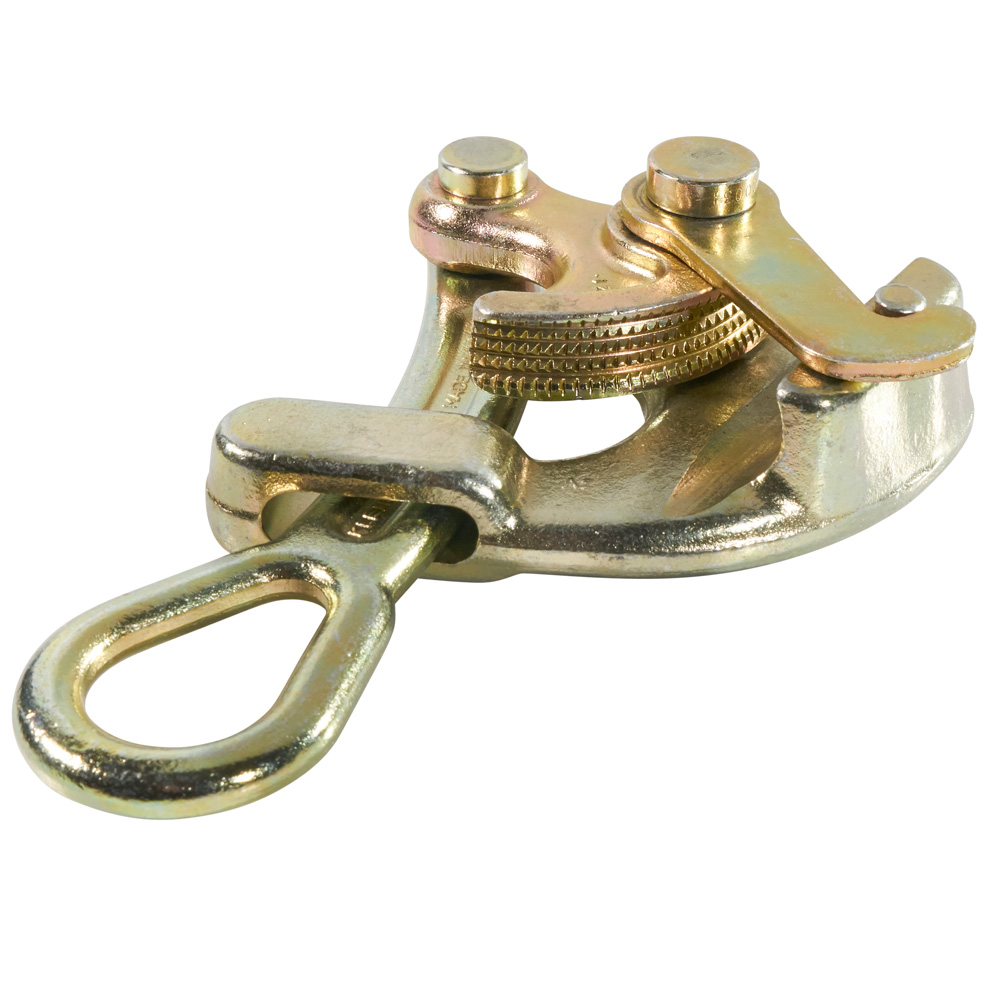

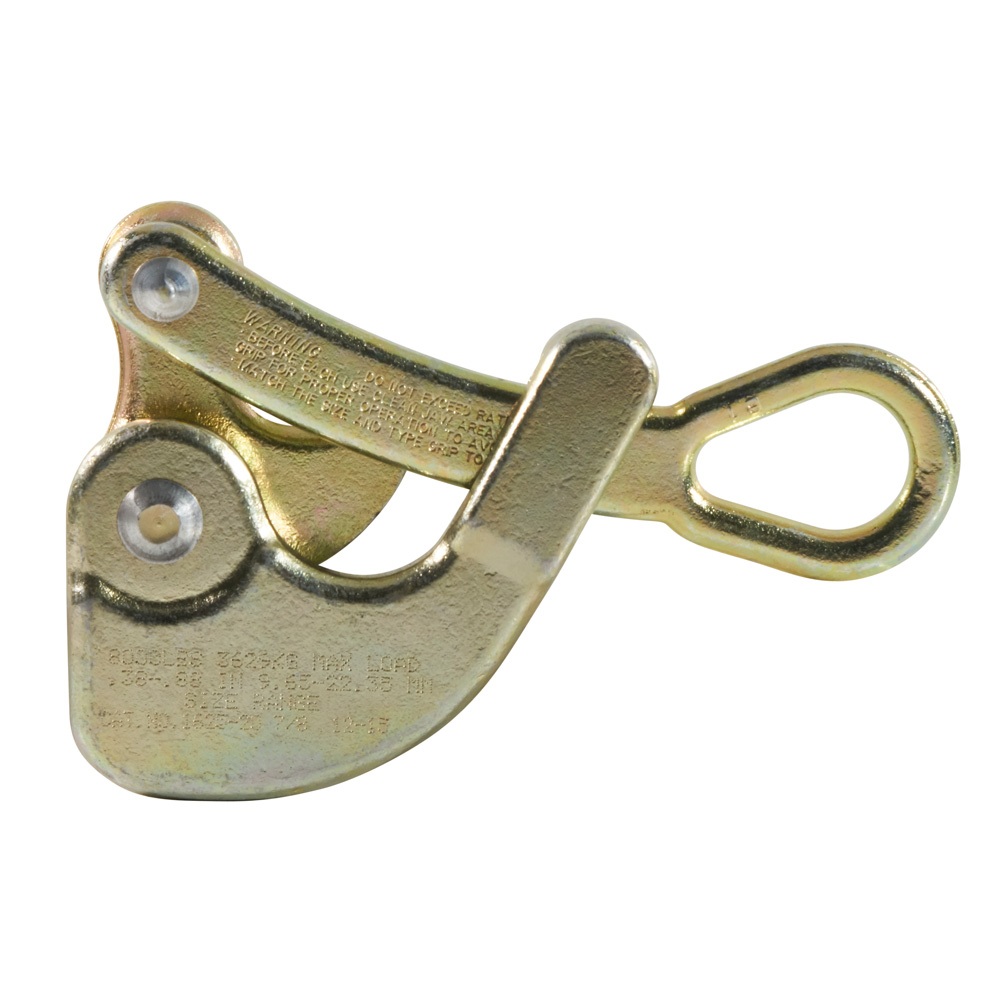

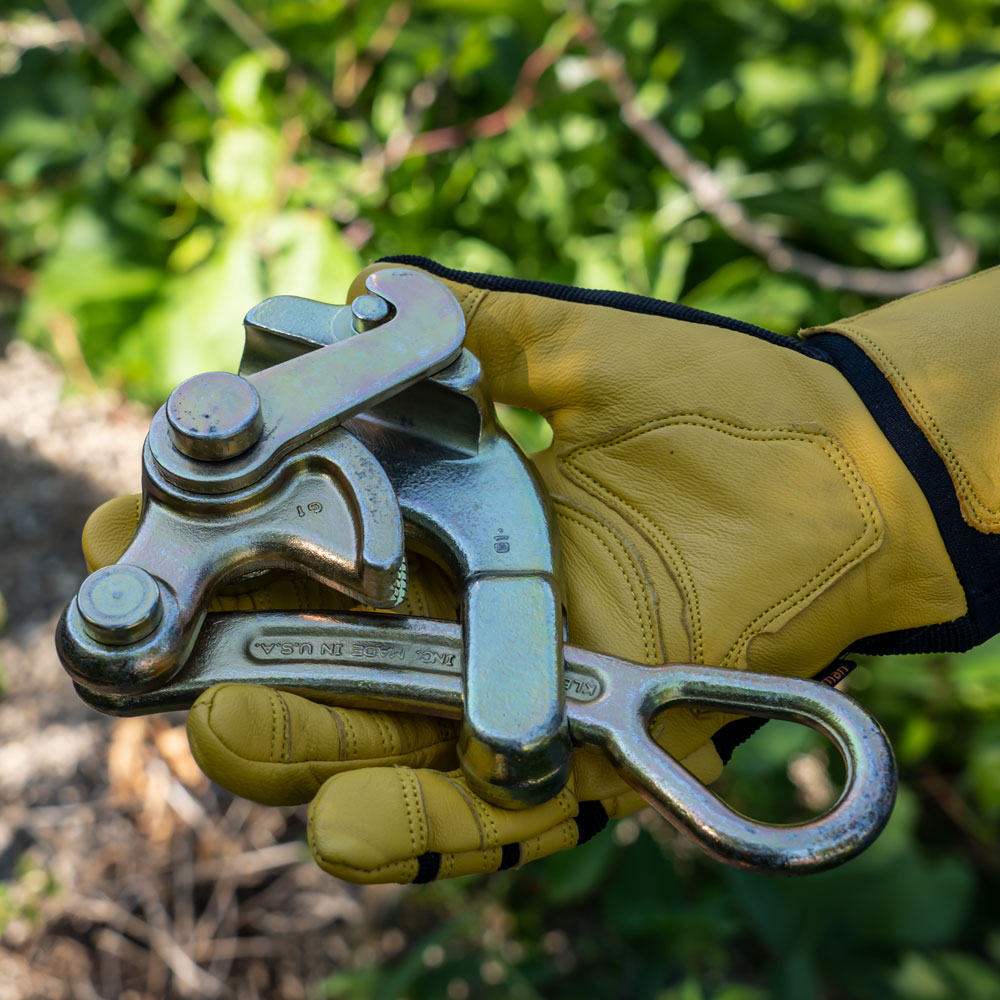

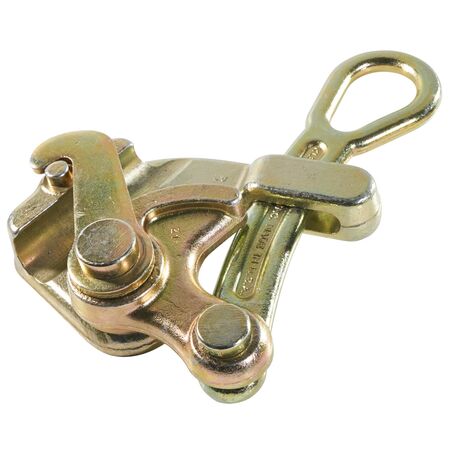

Haven's™ Grip for Wire Rope | 1.9 cm | 8000 lbs Load Capacity | Aggressive Knurled Jaw | @Each by Wattmaster
Haven's™ Grip for Wire Rope is designed for efficient wire rope pulling and tensioning, featuring a robust 8000 lbs maximum safe load capacity and an aggressive knurled jaw for secure gripping. Ideal for industrial and construction applications, this durable grip is made from drop-forged, heat-treated steel, ensuring reliability and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Haven's™ Grip for Wire Rope | 1.9 cm | 8000 lbs Load Capacity | Aggressive Knurled Jaw | @Each by Wattmaster
Brand: Wattmaster
SKU: A-1625-20
Alternatively Known As: Wire Rope Grip, Haven's Wire Rope Grip, Wire Pulling Grip, Cable Pulling Grip, Klein Tools 1625 Series Grip
Technical Specifications
- Cable Diameter Range: 0.28'' to 0.75'' (7.11 to 19.05 mm)
- Maximum Safe Load: 8000 lbs (3629 kg)
- Material: Drop-forged, heat-treated steel
- Jaw Type: Aggressive knurled jaw
- Swing Latch: Yes
- Weight: 3.5 lb (1.6 kg)
- Made in the USA
- Dimensions (H x L x W): 150mm x 200mm x 50mm
- Weight: 1.6 kg
Key Features
- Light, compact grip design ideal where cable deformation is not a factor
- Swing latch to securely hold cable in the jaw
- Knurled jaw applies gripping pressure to 1/4'' (6.35 mm) cable area
- Maximum safe load capacity of 8000 lbs (3629 kg)
- Manufactured from custom drop-forged, heat-treated steel for durability
- Individually hand inspected and tested for quality and reliability
- Aggressive jaw type for secure grip
Professional Installation Requirements
- Should be used by trained personnel familiar with wire rope handling and safety procedures; inspect before each use to ensure proper operation and avoid slippage.
Applications

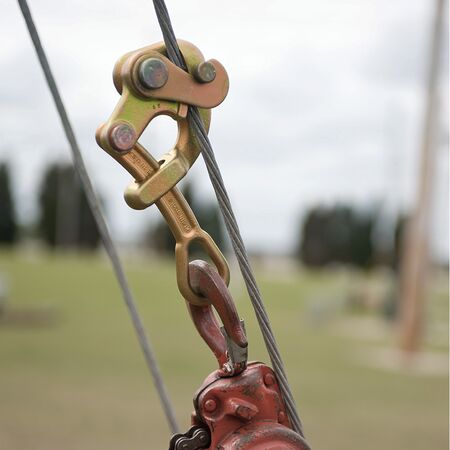

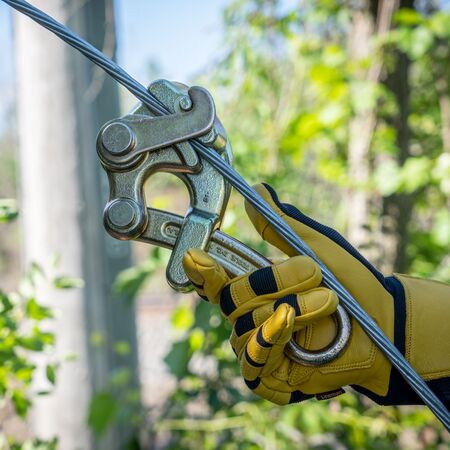

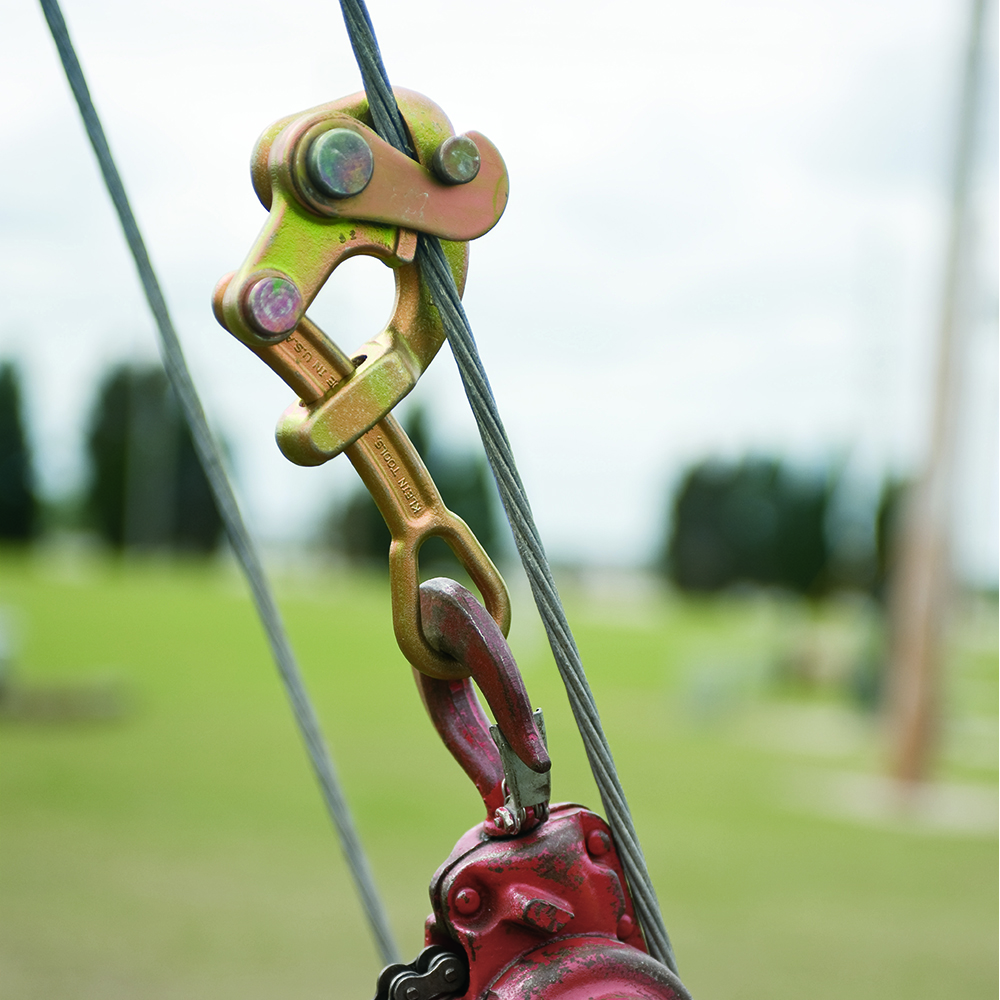

- Wire rope pulling and tensioning
- Temporary cable anchorage during installation
- Electrical and construction wire pulling tasks
- Industrial and utility line work
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Reusable tool reduces environmental impact compared to disposable alternatives
Warranty Information
Warranty details are provided by the manufacturer; typically includes coverage against manufacturing defects.
Available Now
The Wattmaster Haven's™ Grip for Wire Rope 1.9 cm is available for immediate purchase, ideal for industrial, construction, and electrical wire-pulling applications.
