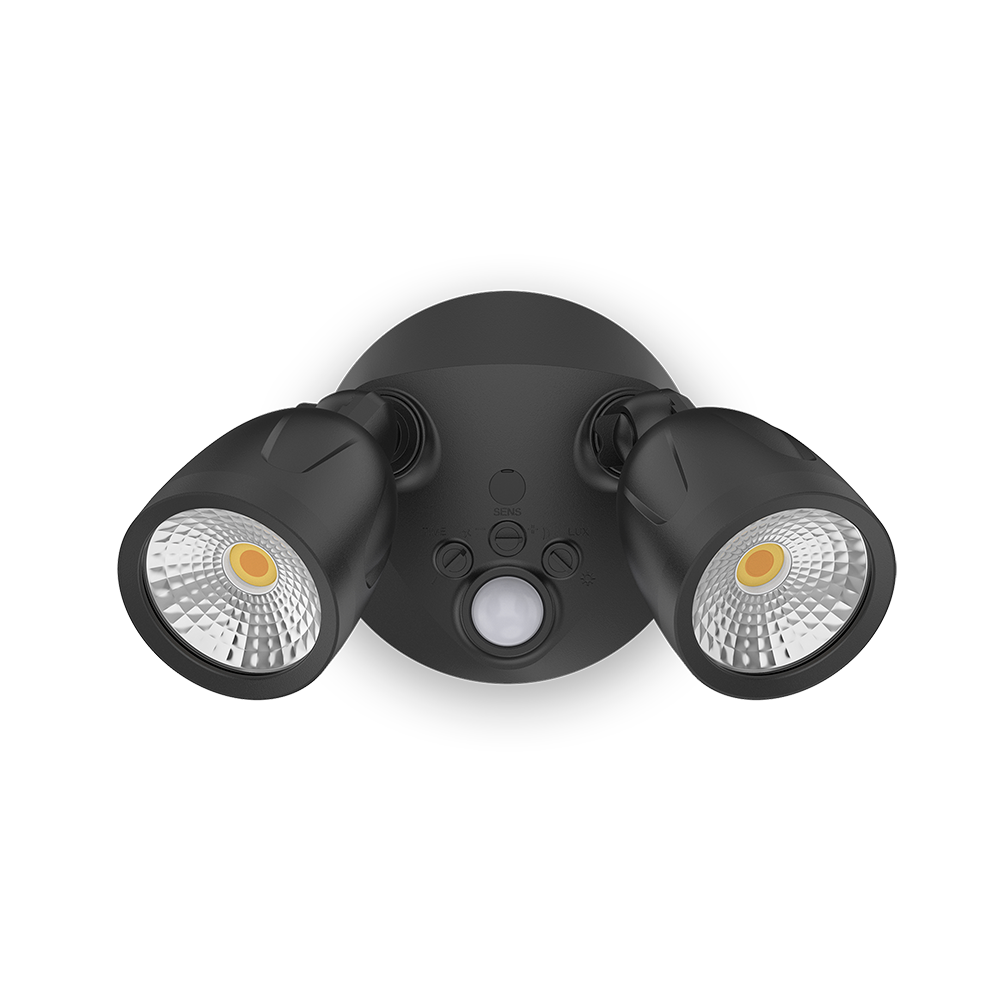

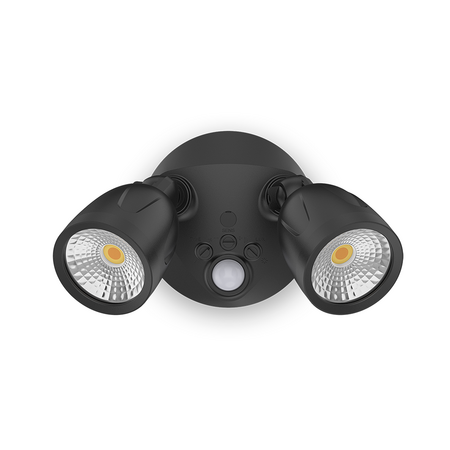

Hawk 12W Twin LED Security Spotlight | IP65 Weather Resistant | PIR Sensor | Black Finish | by atom
The Hawk 12W Twin LED Security Spotlight is designed for outdoor security lighting, featuring an IP65 rating for weather resistance and a PIR sensor with an 8m detection range. Ideal for residential and commercial properties, this spotlight offers flexible operation with manual override and dusk mode, ensuring reliable illumination for pathways and perimeters.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Twin LED Security Floodlight, PIR Motion Sensor Spotlight, Outdoor LED Security Light
Technical Specifications
- Total System Efficiency: up to 123 lm/W
- IP Rating: IP65
- Body Material: ABS
- Diffuser Material: Glass
- Installation Type: Surface mount
- Working Temperature Range: -10 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 18 W (twin light)
- Input Voltage: 230Vac (216-253Vac range)
- Input Current: 0.11 A
- Colour Rendering Index (CRI): >80
- LED Type: COB
- CCT Configuration: TRI-CCT (3000K, 4000K, 5000K)
- Macadam Steps: 6-step MacAdam Ellipse
- Beam Angle: 90°
- LED Lifetime: 108,000 hours (L70B10)
- Driver Type: Fixed output, integrated, constant current
- Dimmable: No
- Wiring Type: Re-wireable terminal block (3 pin)
- Sensor Type: PIR
- Detection Range: 8 m
- Detection Angle: 120°
- Switched Output Rating: 300 W
- Sensor Features: Lux adjustment, manual override, dusk mode, adjustable detection area/sensitivity
- Dimensions (H x L x W): 150mm x 250mm x 200mm
- Weight: 1.2 kg
Key Features
- IP65 rated for weather resistance
- Twin 12W COB LED with TRI-CCT configuration (3000K, 4000K, 5000K)
- PIR sensor with 8m detection range and 120° detection angle
- Manual override and dusk mode for flexible operation
- Fixed output integrated driver with constant current
- High LED lifetime of 108,000 hours (L70B10 rating)
- Colour Rendering Index (CRI) greater than 80
- Surface mount installation with charcoal ABS body and glass diffuser
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and optimal sensor configuration.
Applications
- Outdoor security lighting for residential and commercial properties
- Perimeter and pathway illumination
- Areas requiring motion-activated lighting
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS/NZS 60598.2.1 – Fixed General Purpose Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for LED Modules
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance Characteristics of Electrical Lighting and Similar Equipment
Environmental Benefits
- High system efficiency of up to 123 lm/W reduces energy consumption
- Long LED lifetime minimizes waste and replacement frequency
- Dimmable sensor features reduce unnecessary power usage
Warranty Information
Standard 3 years return-to-base warranty for domestic use. VIP warranty offers 2 years onsite plus 3 years return-to-base (total 5 years) for registered users in defined regions.
Available Now
The Hawk 12W Twin LED Security Spotlight with PIR Sensor is available for immediate purchase, ideal for outdoor security and perimeter lighting applications.
