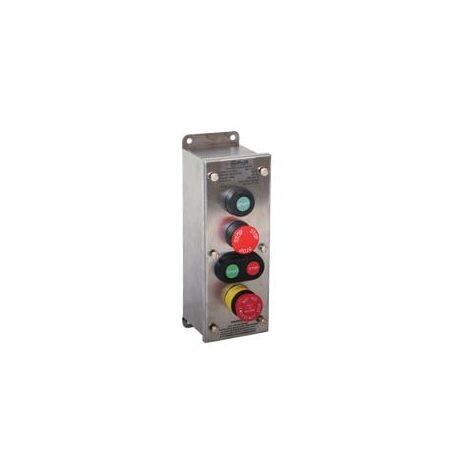

Hazardous Area Control Station | 112x90x90mm | Stainless Steel | IP66 by B&R Enclosures
Hazardous area control station with 112x90x90mm dimensions and stainless steel construction—ideal for chemical, petrochemical, and dust applications. Built for durability, with IP66 protection and customizable configurations.
Sign in
Please login to continue to your account.
Product Name/Title: Ctrl Stn SS 112x90x90 2P Sml Hdl 39mm TBS/CBS
Brand: B&R Enclosures
SKU: CSS1K6
Alternatively Known As: Hazardous Area Control Station, Stainless Steel Control Station, IP66 Control Station
- Manufactured from 1.5mm 316 stainless steel with N4 surface finish.
- Protection Ratings: Ex e IIC T6 Gb, Ex nA IIC T6 Gb, Ex de IIC T6 Gb, Ex tD A21/22 T80ºC, DIP A21/22 Ta80ºC, Ex t IIIC T80ºC Db.
- Ambient Temperature: -20ºC up to +40ºC / 55ºC option.
- IECEx Certificate: IECEx ITA 10.0023X.
- Dimensions (H x L x W): 95mm x 70mm x 80mm
- Weight: 2.0 kg
- Suitable for use within chemical, petrochemical, dust and grain applications where a small enclosure is required.
- Available pre-configured or customer built for ease of installation from one to six operators.
- Specially designed gutter system to protect equipment.
- Certified control operators.
- Gasket material EDPM black.
- Silicon gasket available on request for IP65 and IP66 only.
- Stainless steel cover fixings.
- Mounting flanges.
- Earth strap kit.
- Customised etched certification and identification label.
- 2 x M20 bottom clearance holes, 1 entry fitted with certified plastic plug.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Offshore
- Mining
- Metal refining
- Marine
- Oil & gas
- Petrochemical
- Manufacturing
- Complies with AS/NZS 60035 for electrical equipment in explosive atmospheres.
- Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Fixed Lid Control Station is available now for immediate purchase. Ideal for use in hazardous environments across various industries.
