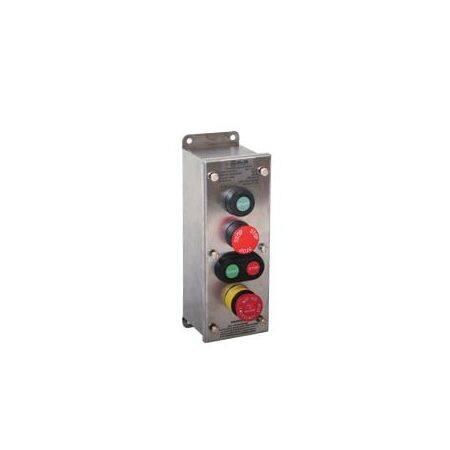

Hazardous Area Control Station | 316 Stainless Steel | IP66 Rated | 112x90x90mm by B&R Enclosures

BRAND: B&R Enclosures
SKU: CSS1P2
$1,142.20 List price: $1,435.60
+ −
30 Days Return Delivery Options
Hazardous area control station with 316 stainless steel construction and IP66 rating—ideal for chemical, petrochemical, and dust applications. Built for durability and safety, with certified control operators and customizable configurations.

Product Name/Title: Ctrl Stn SS 112x90x90 DblPB St/Stp TBS/CBS

Brand: B&R Enclosures

SKU: CSS1P2

Alternatively Known As: Hazardous Area Control Station, Stainless Steel Control Station, IP66 Control Station

Technical Specifications
  • Material: 316 stainless steel
  • Protection Ratings: Ex e IIC T6 Gb, Ex nA IIC T6 Gb, Ex de IIC T6 Gb, Ex tD A21/22 T80ºC, DIP A21/22 Ta80ºC, Ex t IIIC T80ºC Db.
  • Ambient Temperature: -20ºC up to +40ºC / 55ºC option.
  • IECEx Certificate: IECEx ITA 10.0023X.
  • Dimensions (H x L x W): 95mm x 70mm x 80mm
  • Weight: 1.5 kg
Key Features
  • Suitable for use within chemical, petrochemical, dust and grain applications where a small enclosure is required.
  • Available pre-configured or customer built for ease of installation from one to six operators.
  • Specially designed gutter system to protect equipment.
  • Certified control operators.
  • Gasket material EDPM black.
  • Silicon gasket available on request for IP65 and IP66 only.
  • Stainless steel cover fixings.
  • Mounting flanges.
  • Earth strap kit.
  • Customised etched certification and identification label.
  • Protection Ratings: Ex e IIC T6 Gb, Ex nA IIC T6 Gb, Ex de IIC T6 Gb, Ex tD A21/22 T80ºC, DIP A21/22 Ta80ºC, Ex t IIIC T80ºC Db.
  • Ambient Temperature: -20ºC up to +40ºC / 55ºC option.
  • IECEx Certificate: IECEx ITA 10.0023X.
  • Manufactured from 1.5mm 316 stainless steel with N4 surface finish.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Offshore
  • Mining
  • Metal refining
  • Marine
  • Oil & gas
  • Petrochemical
  • Manufacturing
Standards & Compliance
  • Complies with AS/NZS 60035 for electrical equipment in explosive atmospheres.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Fixed Lid Control Station is available now for immediate purchase. Ideal for use in hazardous environments across various industries.

Specification Sheet (, 439 Kb) [Download]

Specification Sheet (, 441 Kb) [Download]
