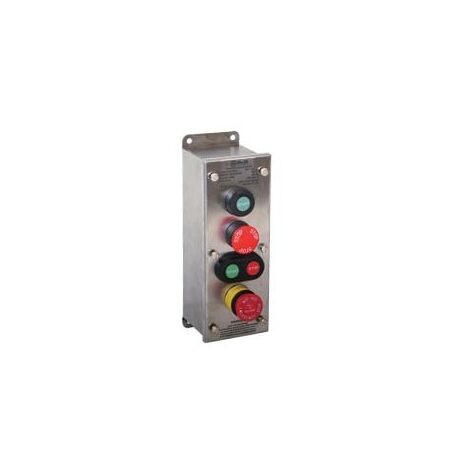

Product Name/Title: Ctrl Stn SS 205x90x90 2xPB GN RD Rd-L TBS/CBS
Brand: B&R Enclosures
SKU: CSS3PGPRLR
Alternatively Known As: Hazardous Area Control Station, Stainless Steel Control Station, IP66 Control Station
- Material: 316 stainless steel with N4 surface finish.
- Protection Ratings: Ex e IIC T6 Gb, Ex nA IIC T6 Gb, Ex de IIC T6 Gb, Ex tD A21/22 T80ºC, DIP A21/22 Ta80ºC, Ex t IIIC T80ºC Db.
- Ambient Temperature: -20ºC up to +40ºC / 55ºC option.
- IECEx Certificate: IECEx ITA 10.0023X.
- Dimensions (H x L x W): 175mm x 70mm x 80mm
- Weight: 2.5 kg
- Suitable for use within chemical, petrochemical, dust and grain applications where a small enclosure is required.
- Available pre-configured or customer built for ease of installation from one to six operators.
- Specially designed gutter system to protect equipment.
- Certified control operators.
- Gasket material EDPM black.
- Silicon gasket available on request for IP65 and IP66 only.
- Stainless steel cover fixings.
- Mounting flanges.
- Earth strap kit.
- Customised etched certification and identification label.
- Protection Ratings: Ex e IIC T6 Gb, Ex nA IIC T6 Gb, Ex de IIC T6 Gb, Ex tD A21/22 T80ºC, DIP A21/22 Ta80ºC, Ex t IIIC T80ºC Db.
- Ambient Temperature: -20ºC up to +40ºC / 55ºC option.
- IECEx Certificate: IECEx ITA 10.0023X.
- Manufactured from 1.5mm 316 stainless steel with N4 surface finish.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Offshore
- Mining
- Metal refining
- Marine
- Oil & gas
- Petrochemical
- Manufacturing
- Complies with AS/NZS 60035 for electrical equipment in explosive atmospheres.
- Durable materials reduce the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Fixed Lid Control Station is available now for immediate purchase. Ideal for hazardous environments requiring reliable control solutions.
