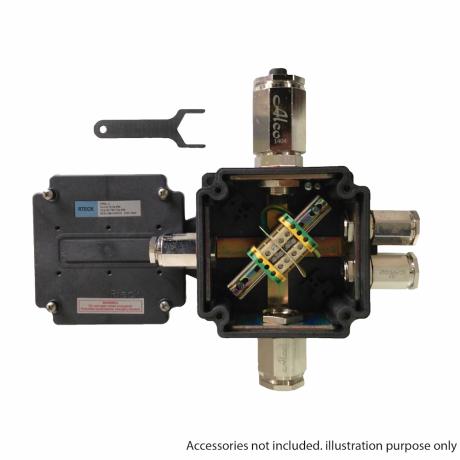

Hazardous Area Junction Box ANZEx | 3x 20mm & 2x 25mm Entries | IP66 Rated | by Wattmaster
The Hazardous Area Junction Box ANZEx is designed for use in hazardous environments, featuring 3x 20mm and 2x 25mm entries with a terminal capacity of 7x 4mm². Built for oil and gas industries, this robust junction box offers IP66 protection and is made from high impact resistant glass fibre reinforced thermoplastic, ensuring durability and safety in explosive atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hazardous Area Junction Box ANZEx | 3x 20mm & 2x 25mm Entries | IP66 Rated | by Wattmaster
Brand: Wattmaster
SKU: ALCHAJB2-W4-7
Alternatively Known As: Hazardous Area Electrical Junction Box, Explosion Proof Junction Box, ANZEx Certified Junction Box, Industrial Junction Box for Hazardous Locations
Technical Specifications
- Entries: 3x 20mm, 2x 25mm
- Terminal Capacity: 7x 4mm²
- Earth Terminals: 2
- Material: Glass fibre reinforced thermoplastic - polyamide
- Wall Thickness: 4.2mm
- Tabs Thickness: 7.5mm
- Degree of Protection: IP66
- Certification: IEC Ex Simtars Australia
- Dimensions (H x L x W): 150mm x 100mm x 200mm
- Weight: 1.5 kg
Key Features
- IEC Ex certification Simtars Australia suitable for zones 1, 2 (oil & gas) and zones 21, 22 (dust)
- Special terminal configuration available on request
- Innovative design reduces installation time
- Robust construction with heavy walls (4.2mm) and 7.5mm tabs
- High impact resistant glass fibre reinforced thermoplastic - polyamide
- Good chemical resistance
- IP66 degree of protection
- Easy fit fixing tabs designed for unistrut, flat bar, angle irons up to 80mm wide, and large flat surfaces
- 3 or 5 entry options for easy installation and termination
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Hazardous areas in oil and gas industries
- Zones 1 and 2 (gas)
- Zones 21 and 22 (dust)
- Industrial environments requiring robust electrical junction protection
Standards & Compliance
- Complies with AS/NZS 60079 for electrical equipment in explosive atmospheres
Environmental Benefits
- Durable materials reduce the need for frequent replacements
- High chemical resistance minimizes environmental contamination risks
- IP66 rating ensures protection against dust and water ingress, extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Hazardous Area Junction Box ANZEx is available for immediate purchase, ideal for use in hazardous industrial environments requiring certified explosion-proof electrical enclosures.
