Hazardous Nylon Plug M25 | 14mm Thread Length | IP66/68 Rated | Silicone Seal | @Each by Wattmaster

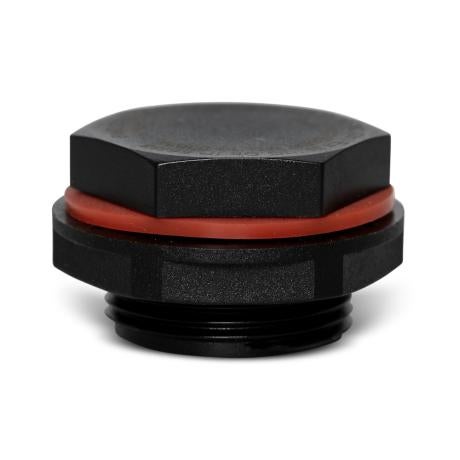

The Hazardous Nylon Plug M25 is designed for sealing unused cable entries in hazardous electrical enclosures. With a 14mm thread length and IP66/68 ingress protection, it ensures reliable performance in explosive atmospheres. Made from durable Nylon PA6 with a silicone seal, this plug is perfect for both indoor and outdoor use, providing a secure fit with its included locknut.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hazardous Nylon Plug M25 | 14mm Thread Length | IP66/68 Rated | Silicone Seal | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBPPM25
Alternatively Known As: Hazardous Nylon Cable Plug M25, Nylon Threaded Plug M25, M25 Nylon Seal Plug
Technical Specifications
- Thread Size: M25
- Thread Length: 14mm
- Material: Nylon PA6 plated
- Seal Material: Silicone
- Ingress Protection: IP66/68
- Temperature Range: -60°C to +80°C
- Protection Types: Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IEC/AS/NZS60079 (.0, .7, .31), IEC/AS/NZS 60529
- Certification: IECEx IMQ 13.0003X
- Dimensions (H x L x W): 14mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Suitable for indoor and outdoor use
- Temperature range from -60°C to +80°C
- Provides a secure seal on enclosures for unused entries
- High ingress protection rated IP66/68
- Includes locknut as standard for secure fitting
- Made from durable Nylon PA6 plated material
- Silicone seal for enhanced protection
- Complies with IECEx IMQ 13.0003X certification
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with hazardous area equipment to ensure compliance with safety standards.
Applications
- Sealing unused cable entries in hazardous indoor and outdoor electrical enclosures
- Suitable for use in explosive atmospheres requiring Ex eb IIC Gb and Ex tb IIIC Db protection
- Industrial and commercial hazardous area installations
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Seals prevent ingress of contaminants, protecting electrical systems and reducing environmental hazards
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Hazardous Nylon Plug M25 Thread Length 14mm with Locknut & Silicone Seal is available for immediate purchase, ideal for sealing unused entries in hazardous electrical enclosures.
