Hazardous Nylon Plug M40 | 18mm Thread Length | IP66/68 Rated | Silicone Seal | @Each by Wattmaster

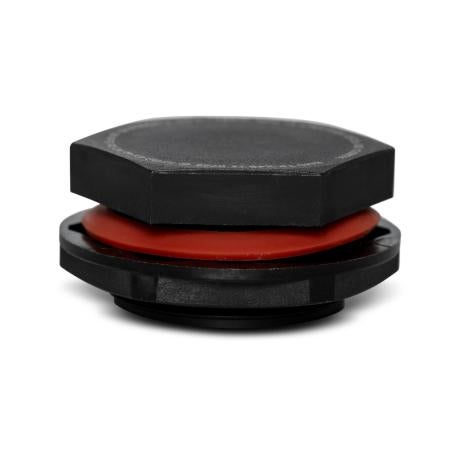

The Hazardous Nylon Plug M40 is designed for sealing unused entries in hazardous electrical enclosures, featuring an 18mm thread length and a durable silicone seal. With an IP66/68 rating, it provides exceptional protection against water ingress, making it suitable for both indoor and outdoor use in explosive atmospheres. Ideal for professionals ensuring compliance and safety in electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Hazardous Nylon Plug M40 | 18mm Thread Length | IP66/68 Rated | Silicone Seal | @Each by Wattmaster
Brand: Wattmaster
SKU: ALCBIMBPPM40
Alternatively Known As: Hazardous Nylon Cable Plug, M40 Nylon Plug with Locknut, Silicone Sealed Nylon Plug, IP66/68 Nylon Plug
Technical Specifications
- Thread Size: M40
- Thread Length: 18mm
- Material: Nylon PA6 plated
- Seal Material: Silicone
- Temperature Range: -60°C to +80°C
- Ingress Protection: IP66/68
- Protection Types: Ex eb IIC Gb, Ex tb IIIC Db
- Standards Compliance: IEC/AS/NZS60079 (.0, .7, .31), IEC/AS/NZS 60529
- Locknut: Supplied as standard
- Dimensions (H x L x W): 18mm x 40mm x 40mm
- Weight: 0.1 kg
Key Features
- Suitable for indoor or outdoor use
- Temperature range from -60°C to +80°C
- Provides a secure seal on enclosures for unused entries
- High degree of protection against water ingress with IP66/68 rating
- Locknut supplied as standard for secure fitting
- Made from durable Nylon PA6 plated material
- Silicone seal for enhanced protection
Professional Installation Requirements
- Installation should be performed by a qualified professional familiar with hazardous area electrical installations to ensure compliance and safety.
Applications
- Sealing unused entries in hazardous area enclosures
- Indoor and outdoor electrical installations requiring ingress protection
- Use in explosive atmospheres requiring Ex eb IIC Gb and Ex tb IIIC Db protection
Standards & Compliance
- AS/NZS 60079 – Explosive atmospheres standards
- AS/NZS 60529 – Degrees of protection by enclosures (IP Code)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Provides effective sealing to prevent environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Hazardous Nylon Plug M40 Thread Length 18mm with Locknut & Silicone Seal is available for immediate purchase, ideal for sealing unused entries in hazardous electrical enclosures.
