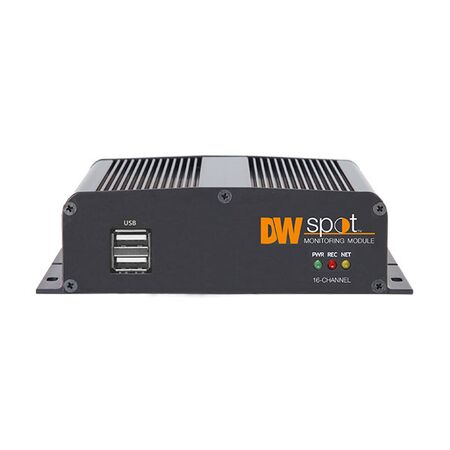

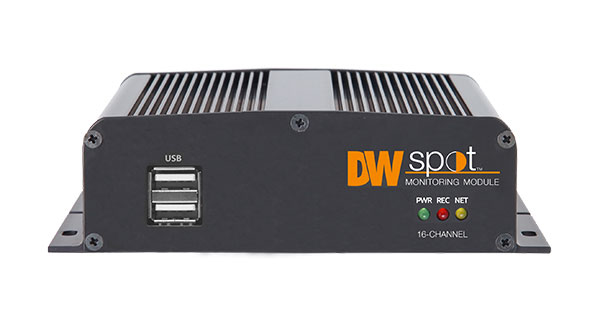

HD Spot Monitor Module 16 Channel 4K Output USB Mouse Ness
Ness HD spot monitor module features 16 channels, 4K output, 480fps live view and a USB mouse. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Digital Watchdog DW-HDSPOTMOD16, 16-Channel HD Spot Monitoring Module, CCTV Spot Monitor Module
Technical Specifications
- Model: DW-HDSPOTMOD16
- Ness SKU: 123-203
- Operating System: Embedded Linux
- IP Camera Input: 16 channels
- Supported Codecs: H.265, H.264
- Protocol: ONVIF
- Display Speed: Up to 480fps
- Maximum Throughput: 80 Mbps
- Video Input: IP cameras up to 4K, VMAX A1/A1 Plus DVRs and VMAX IP Plus NVRs
- Video Output: 4K True HD and VGA
- True HD Resolution: 3840 x 2160, 1920 x 1080, 1280 x 720, 1024 x 768
- VGA Resolution: 1920 x 1080, 1280 x 720, 1024 x 768
- Network Interface: 1 x 10/100/1000 Base-TX Ethernet RJ45
- Power Supply: DC 12V, 1A
- Operating Temperature: 5°C to 40°C
- Operating Humidity: 20–90% RH, non-condensing
- Compliance Markings: NDAA/TAA compliant
- Dimensions (H x L x W): 32mm x 139mm x 123mm
- Weight: 1.5 kg
Key Features
- Directly monitors up to 16 HD cameras without a dedicated PC or server
- Supports single, quad, nine-channel and 16-channel split-screen views
- Supports camera sequencing and drag-and-drop camera selection
- Automatic network search and device registration
- Supports ONVIF IP cameras and compatible Digital Watchdog DVRs and NVRs
- 4K 3840 x 2160 True HD output with VGA output
- USB mouse included
- Remote configuration through the internet
- Firmware upgrades via USB and CMS
- Velcro mounting supplied for attachment to the rear of a monitor
Professional Installation Requirements
- Installation and network configuration should be performed by a suitably qualified CCTV or security technician. Connect only to the specified 12V DC power supply and configure the unit in accordance with the camera, network and recording equipment requirements.
Applications
- Retail and commercial premises CCTV monitoring
- Office security monitoring
- Security control rooms and reception areas
- Local display of ONVIF IP cameras
- Local monitoring of compatible DVR and NVR systems
Standards & Compliance
- AS/NZS 62368.1:2022 is the relevant Australian/New Zealand safety standard for audio, video, information and communications technology equipment; product-specific compliance evidence was not located.
Environmental Benefits
- Provides local CCTV monitoring without requiring a dedicated monitoring PC or server
- Embedded monitoring hardware can reduce additional equipment requirements in a surveillance installation
- Compact design supports lower material use and easier equipment integration
- Digital video monitoring avoids the consumables associated with analogue recording media
Warranty Information
3-year warranty from date of purchase for Digital Watchdog cameras, recorders and servers supplied by Ness, subject to Ness warranty terms and exclusions.
Available Now
Available through Ness Corporation and authorised Australian security and CCTV distributors.
