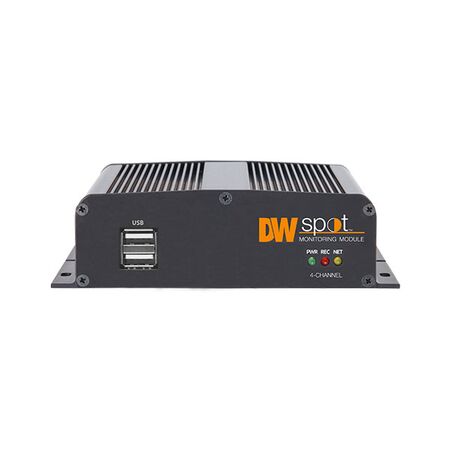

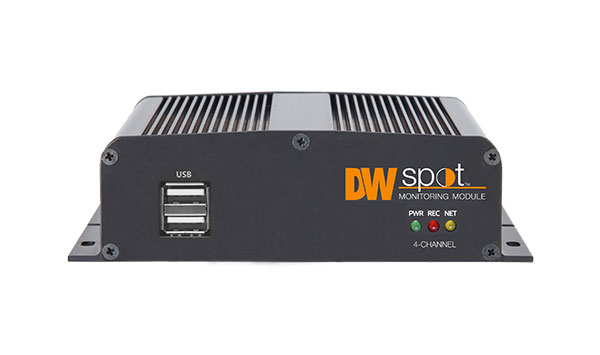

HD Spot Monitor Module 4 Channel 4K ONVIF Remote Config Ness
Ness HD spot monitor module features 4 channels, 4K resolution, ONVIF compliance and remote configuration. Ideal for CCTV installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: DW-HDSPOTMOD, 4-Channel CCTV Spot Monitor, Digital Watchdog Spot Monitoring Module
Technical Specifications
- Model: DW-HDSPOTMOD
- Video Input: 4 IP camera channels
- Supported Resolution: Up to 4K, 3840 x 2160
- Video Protocol: ONVIF
- Supported Codecs: H.265 and H.264
- Display Speed: Up to 120 fps
- Maximum Throughput: 80 Mbps
- Video Outputs: True HD and VGA
- True HD Output Resolutions: 3840 x 2160, 1920 x 1080, 1280 x 720, 1024 x 768
- Screen Modes: Single channel, quad view and sequence
- Network Interface: 10/100/1000 Base-T Ethernet via RJ45
- Network Protocols: TCP/IP, static IP, DHCP, DDNS and UPnP
- Remote Management: Web-based system configuration
- Power Requirement: 12 V DC, 1 A
- Operating Temperature: 5°C to 40°C
- Operating Humidity: 20–90% RH, non-condensing
- Surge Protection: Video input ±4 kV; ESD ±15 kV air and ±10 kV contact
- Dimensions (H x L x W): 139mm x 32mm x 123mm
- Weight: 0.35 kg
Key Features
- Directly views up to four HD cameras without a PC or server
- Supports ONVIF-compliant IP cameras and compatible Digital Watchdog DVRs and NVRs
- Provides local monitoring at up to 4K resolution
- Supports single-camera, quad-view and camera-sequencing display modes
- Remote configuration through an internet-connected web interface
- Automatic network search and device registration
- Firmware upgrades through USB and CMS software
- Digital zoom and automatic recovery after power failure
- Includes USB mouse and Velcro mounting for attachment to the rear of a monitor
- NDAA and TAA compliant
Professional Installation Requirements
- Installation should be completed by a competent CCTV or security-system technician. Any connection to mains-powered equipment must comply with applicable electrical installation requirements and be performed by a licensed electrician where required.
Applications
- CCTV monitoring in retail environments
- Office and commercial security systems
- Security control rooms and reception areas
- Local display of ONVIF IP cameras
- Monitoring compatible Digital Watchdog DVRs and NVRs
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance systems; applicable to CCTV system requirements and installations. No product-specific conformity claim was located.
- AS/NZS 4417.1 and AS/NZS 4417.2 – Regulatory Compliance Mark requirements may apply to the supplied electrical equipment, subject to the configuration and responsible supplier obligations.
Environmental Benefits
- Firmware upgrade capability can extend the useful operating life and reduce premature electronic replacement.
- Compact low-voltage design supports efficient operation compared with larger dedicated monitoring computers.
- Long-term warranty support may reduce product replacement and associated electronic waste.
- Ness publishes RoHS compliance documentation for its product range; verify product-specific documentation where required.
Warranty Information
3-year warranty from date of purchase for Ness manufactured or supplied products, subject to Ness warranty terms and exclusions.
Available Now
Available through Ness and authorised Australian security-system distributors, subject to current stock availability.
