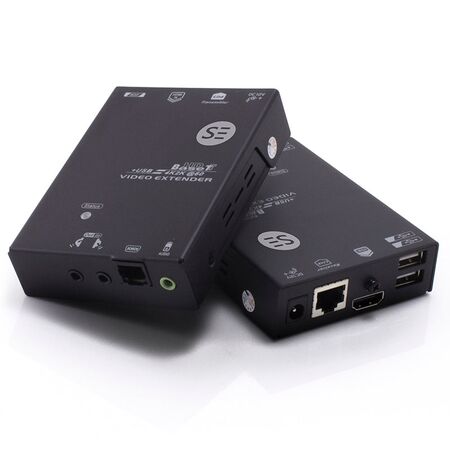

HDBaseT HDMI Extender Kit with 4 USB Ports | 100m Transmission | 1080p Full HD | by SERVEREDGE
The HDBaseT HDMI Extender Kit with 4 USB ports is designed for extending HDMI signals up to 100 meters over Cat5e/6 cables, making it perfect for commercial AV installations, corporate boardrooms, and home theaters. With plug-and-play setup and support for 1080p Full HD video, this kit ensures high-quality audio and video transmission without the hassle of multiple cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HDBaseT HDMI Extender Kit with 4 USB Ports | 100m Transmission | 1080p Full HD | by SERVEREDGE
Brand: SERVEREDGE
SKU: SEDG-HDUEX-100HDBT
Alternatively Known As: HDBaseT HDMI Extender, HDMI Extender Kit with USB, HDMI over Cat5 Extender
Technical Specifications
- Transmission Distance: Up to 100 meters over Cat5e/6 cable
- Video Support: Up to 1080p Full HD
- USB Ports: 4 USB 2.0 ports for peripheral sharing
- Power Supply: External 12V DC adapter
- HDBaseT Standard: Compliant with HDBaseT 1.0
- Connector Types: HDMI Type A, RJ45 for HDBaseT
- Dimensions (H x L x W): 40mm x 120mm x 150mm
- Weight: 1.5 kg
Key Features
- HDBaseT technology for reliable HDMI signal extension up to 100 meters

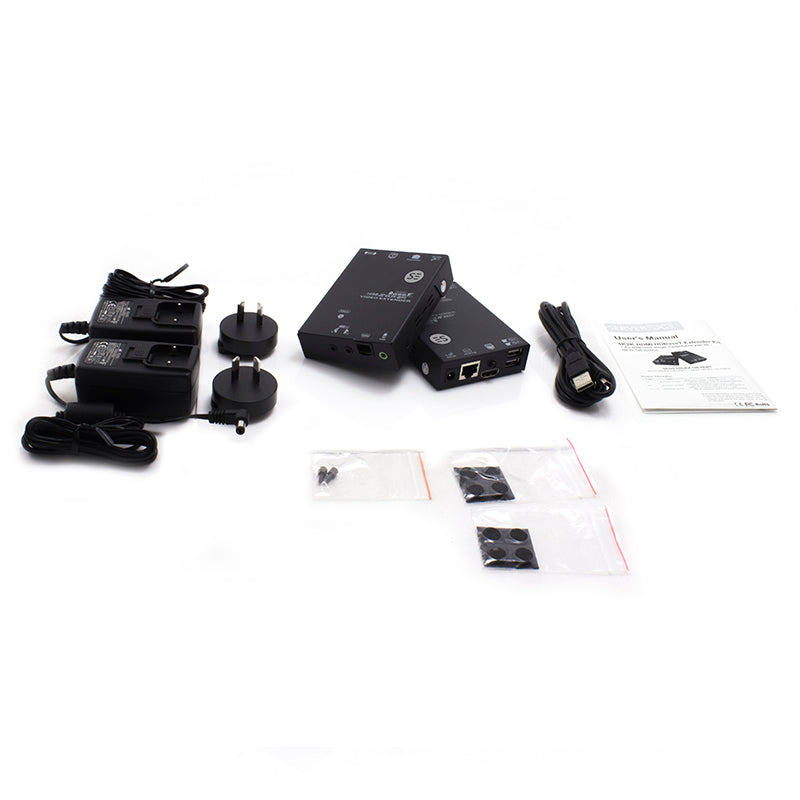

- Includes both transmitter (Tx) and receiver (Rx) units
- Supports 4 USB ports for peripheral sharing
- Plug and play setup with no additional software required
- Supports high-definition video and audio transmission
Professional Installation Requirements
- Professional installation by a qualified AV technician or electrician is recommended to ensure optimal performance and compliance with electrical standards.
Applications
- Extending HDMI signals over long distances in commercial AV installations
- Corporate boardrooms and conference rooms
- Educational facilities for multimedia presentations
- Home theater systems requiring extended HDMI connectivity
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces the need for multiple HDMI cables and repeaters, minimizing material waste
- Energy-efficient design lowers power consumption during operation
Warranty Information
1 year manufacturer warranty covering defects and malfunctions.
Available Now
The Serveredge HDBaseT HDMI Extender Kit (Tx/Rx) with 4 USB ports is available for immediate purchase, ideal for commercial and residential AV extension applications.
