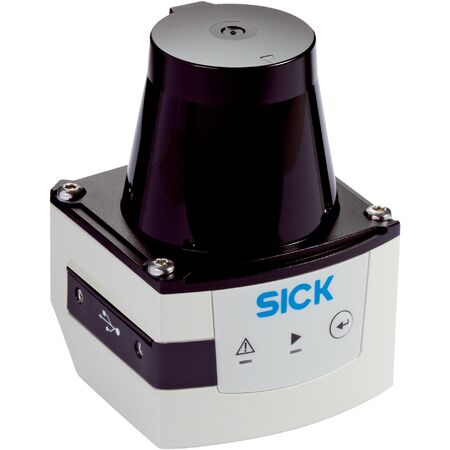

HDDM+ Infrared Laser Sensor | IP67 Rated | 270° Aperture Angle | 15 Hz Scanning Frequency | by SICK
The HDDM+ Infrared Laser Sensor is designed for precise object detection and measurement in industrial settings. With a wide horizontal aperture angle of 270° and a scanning frequency of 15 Hz, it operates effectively within a range of 0.05 m to 10 m. Built for durability, this IP67 rated sensor withstands harsh environments, making it ideal for both indoor and outdoor applications in automation and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 0.33°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 10 m
- Scanning range at 10% remission factor: 8 m
- Connection types: 1 x Ethernet (4-pin M12 female), 1 x Power (12-pin M12 male), 1 x Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with max loaded digital outputs
- Output current: ≤ 100 mA
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Response time: 1 scan typ. 67 ms, 2 scans ≤ 134 ms
- Digital inputs: 4, Outputs: 3 PNP plus 1 Device Ready
- Delay time configurable from 67 ms to 30,000 ms
- Dwell time configurable from 67 ms to 600,052 ms
- Optical indicators: 2 LEDs (ON, switching status)
- Ambient operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: up to 50 g
- Vibration resistance: 10 Hz to 1,000 Hz
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide horizontal aperture angle of 270° with 0.33° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 10 m
- Robust IP67 rated housing for harsh environments
- Multiple interfaces including Ethernet, Micro USB, and digital I/O
- Configurable delay and dwell times for flexible operation
- High vibration and shock resistance suitable for industrial use
- Ambient operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems and electrical safety standards.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety systems
- Field evaluation and contour detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of typically 4 W reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK TIM361-2134101 sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable outdoor and indoor object detection.
