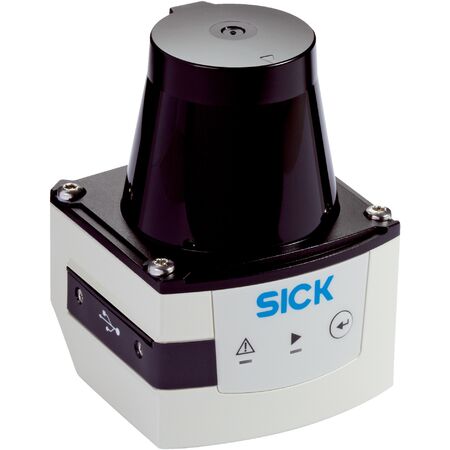

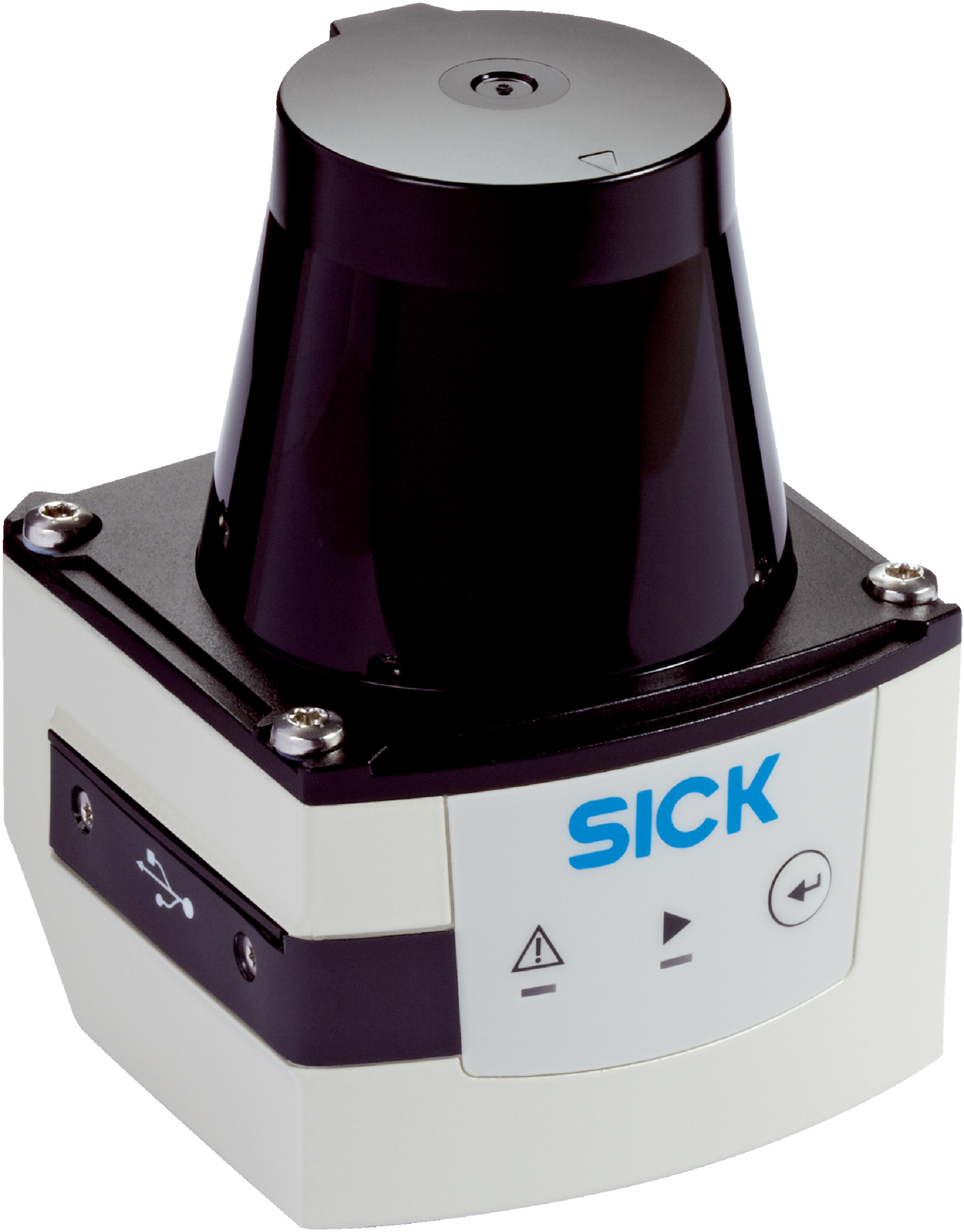

HDDM+ Infrared Sensor | 270° Horizontal Aperture | IP67 Rated | by SICK
The HDDM+ Infrared Sensor is designed for precise object detection and measurement, featuring a wide 270° horizontal aperture and a robust IP67 rated housing. Ideal for both indoor and outdoor industrial automation applications, this sensor operates with a scanning frequency of 15 Hz and a working range of 0.05 m to 25 m, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 0.33° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 25 m
- Robust IP67 rated housing for harsh environments
- Multiple interfaces including Ethernet, Micro USB for parameterization
- Low power consumption typically 4 W, up to 16 W with outputs loaded
- High vibration and shock resistance for industrial use
- Configurable digital inputs and outputs for flexible integration
- Long MTBF and MTTFD of 100+ years ensuring reliability
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper configuration and compliance with safety standards.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety systems
- Field evaluation and measurement data output
Standards & Compliance
- Complies with AS/NZS 61000 series for electromagnetic compatibility
- Complies with AS/NZS 60950 for safety of IT and communication equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product life reducing waste
- Complies with electromagnetic compatibility standards minimizing interference
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK TIM781-2174101 sensor is available for immediate purchase, ideal for industrial automation and safety applications.
