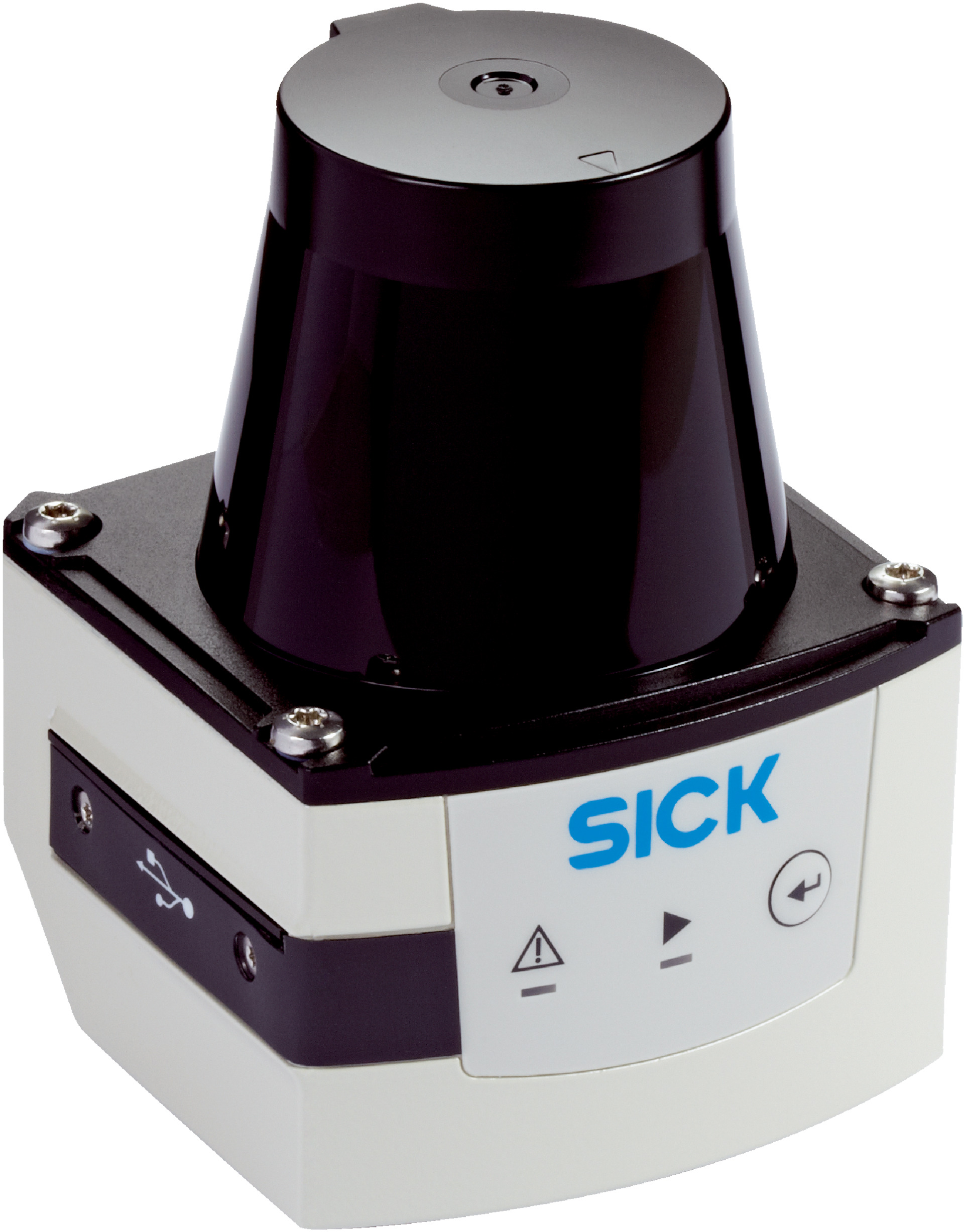

HDDM Infrared Sensor | IP67 Rated | 270° Aperture Angle | 15 Hz Scanning Frequency | by SICK
The HDDM Infrared Sensor is designed for precise object detection and measurement, featuring a wide 270° aperture angle and a scanning frequency of 15 Hz. With an IP67 rating, it’s perfect for both indoor and outdoor industrial applications, ensuring reliable performance in harsh environments. Ideal for automation and safety systems, this sensor operates efficiently within a temperature range of -25 °C to +50 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 0.33°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 10 m
- Scanning range at 10% remission factor: 8 m
- Connection type: 1 x Ethernet (4-pin M12 female), 1 x Power/Synchronization output (5-pin M12 male), 1 x Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W
- Output current: ≤ 100 mA
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Weight: 250 g (without cables)
- MTBF: > 100 years
- Response time: 1 scan typ. 67 ms, 2 scans ≤ 134 ms
- Systematic error: ± 60 mm
- Statistical error: < 20 mm
- Digital outputs: 1 PNP (SYNC/device ready)
- Optical indicators: 2 LEDs (ON, device ready)
- Ambient operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Permissible relative humidity: Operation < 80%, Storage ≤ 95%, non-condensing
- Electromagnetic compatibility: Residential and industrial standards compliant
- Vibration resistance: Sine resonance scan 10 Hz to 1000 Hz
- Shock resistance: 50 g, 11 ms single shocks
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- HDDM measurement principle with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° and angular resolution of 0.33°
- Scanning frequency of 15 Hz with working range from 0.05 m to 10 m
- Robust IP67 rated housing for protection against dust and water
- Multiple interfaces including Ethernet, Micro USB, and digital outputs
- High vibration and shock resistance suitable for industrial environments
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety systems
- Machine safety monitoring and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of approximately 4 W reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK TIM561-2050101S80 sensor is available for immediate purchase, ideal for industrial and commercial outdoor and indoor detection applications.
