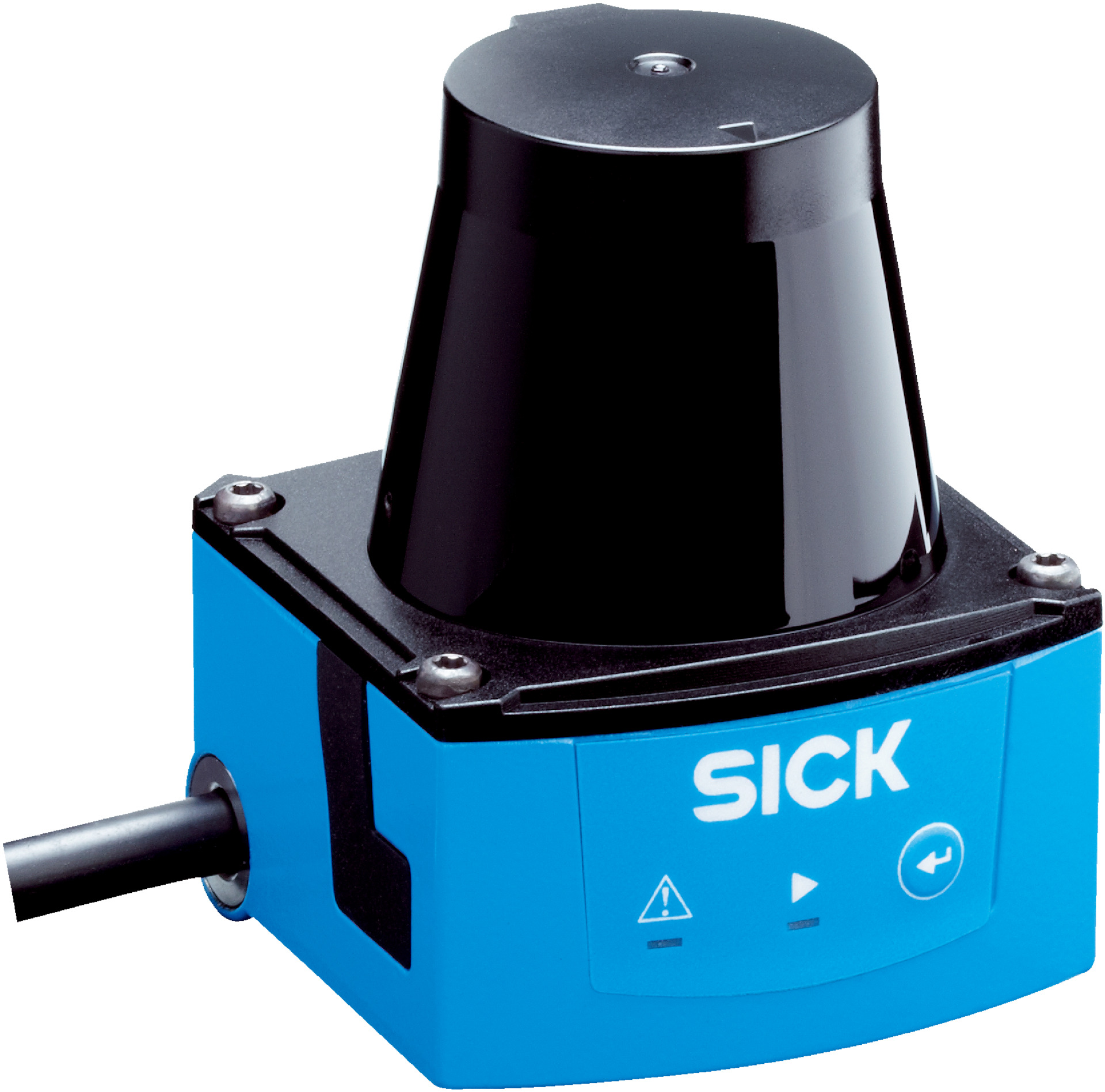

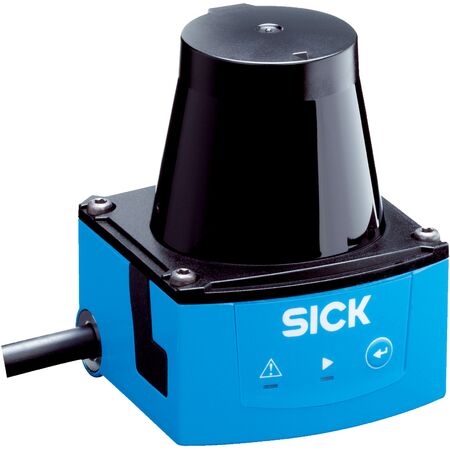

HDDM+ Infrared Sensor TIM310-0130000S02 | IP65 Rated | 270° Aperture Angle | 15 Hz Scanning Frequency | by SICK
The HDDM+ Infrared Sensor TIM310-0130000S02 is designed for precise indoor object detection and measurement, featuring a wide 270° aperture angle and a scanning frequency of 15 Hz. With a robust IP65 rated enclosure, it’s perfect for industrial automation and safety monitoring applications, ensuring reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 1°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 4 m
- Scanning range at 10% remission factor: 2 m
- Connection type: Open wires (2.0 m)
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with 4 max loaded digital outputs
- Output current: ≤ 100 mA
- Housing color: Light blue (RAL 5012)
- Enclosure rating: IP65 (IEC 60529)
- Protection class: III (IEC 61140)
- Response time: 1 scan typ. 67 ms, 2 scans ≤ 134 ms
- Detectable object shape: Almost any
- Systematic error: ± 40 mm
- Statistical error: < 30 mm
- Number of field sets: 16 field triples (48 fields)
- Simultaneous evaluation cases: 1 (3 fields)
- Digital inputs: 4
- Digital outputs: 3 (NPN) plus 1 device ready
- Delay time: 67 ms to 30,000 ms configurable
- Dwell time: 67 ms to 600,052 ms configurable
- Optical indicators: 2 LEDs (ON, switching status)
- Object remission: 4% to 1000% (reflectors)
- EMC emitted radiation: Residential area (EN 61000-6-3)
- EMC immunity: Industrial environment (EN 61000-6-2)
- Vibration resistance: 10 Hz to 1,000 Hz sine resonance scan
- Shock resistance: 50 g, 11 ms single shocks
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Permissible relative humidity operation: < 80%, non-condensing
- Permissible relative humidity storage: ≤ 90%, non-condensing
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 79mm x 60mm x 60mm
- Weight: 0.15 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 1° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 4 m
- Robust IP65 rated enclosure suitable for industrial environments
- Low power consumption typically 4 W, up to 16 W with digital outputs loaded
- Multiple digital inputs and outputs with configurable delay and dwell times
- Micro USB interface for service and parameterization
- High vibration and shock resistance for harsh conditions
- Operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper configuration and safety compliance.
Applications
- Indoor object detection and measurement
- Field evaluation applications
- Industrial automation and safety monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK TIM310-0130000S02 sensor is available for immediate purchase, ideal for indoor industrial automation and safety monitoring applications.
