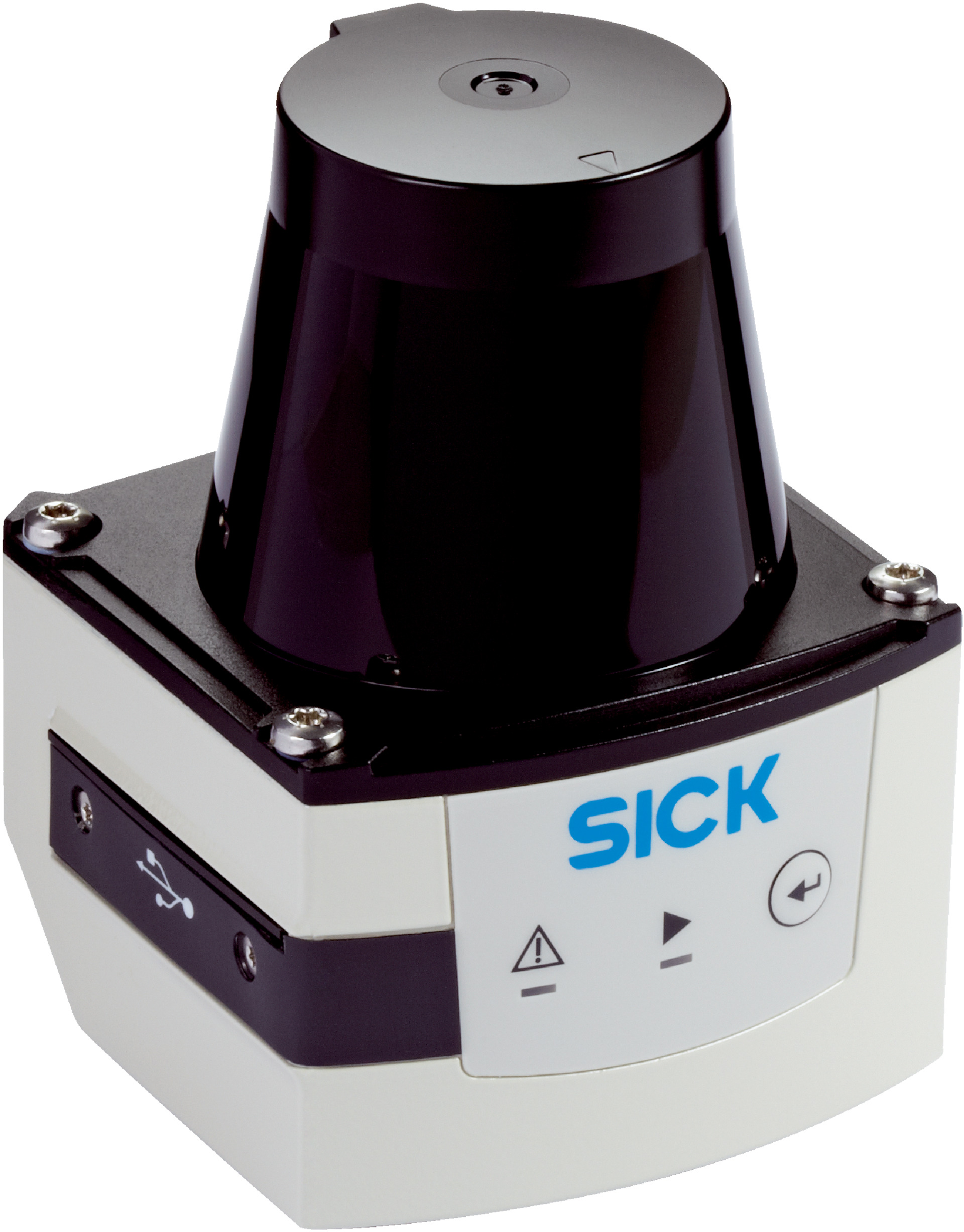

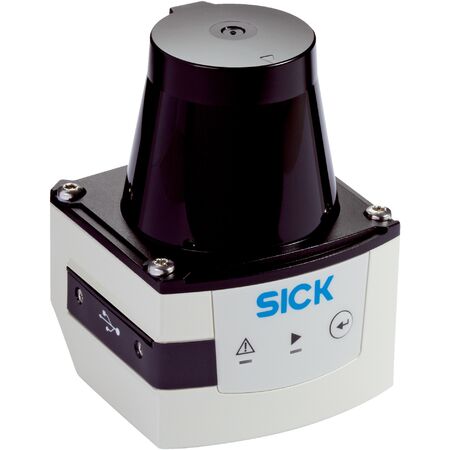

HDDM+ Infrared Sensor TIM551-2050001 | IP67 Rated | 270° Aperture Angle | 15 Hz Scanning Frequency | by SICK
The HDDM+ Infrared Sensor TIM551-2050001 is designed for precise object detection and measurement in industrial automation. With a wide horizontal aperture angle of 270° and a scanning frequency of 15 Hz, it operates effectively within a range of 0.05 m to 10 m. Its robust IP67 rated housing ensures protection against dust and water, making it ideal for both indoor and outdoor applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 1°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 10 m
- Scanning range at 10% remission factor: 8 m
- Connection types: 1 x Ethernet (4-pin M12 female), 1 x Power/Synchronization output (5-pin M12 male), 1 x Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W
- Output current: ≤ 100 mA
- Housing color: Gray (RAL 7032)
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Weight: 250 g (without cables)
- MTBF: > 100 years
- Response time: 1 scan typ. 67 ms, 2 scans ≤ 134 ms
- Systematic error: ± 60 mm
- Statistical error: < 20 mm
- Digital outputs: 1 PNP (SYNC/device ready)
- Optical indicators: 2 LEDs (ON, device ready)
- Electromagnetic compatibility: Residential and industrial standards EN 61000-6-3 and EN 61000-6-2
- Vibration resistance: 10 Hz to 1,000 Hz sine resonance scan
- Shock resistance: up to 50 g
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Ambient light immunity: 80,000 lx
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1:2014 standards
- Wide horizontal aperture angle of 270° with 1° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 10 m
- Robust IP67 rated housing for protection against dust and water
- Multiple interfaces including Ethernet, Micro USB, and digital outputs
- High vibration and shock resistance suitable for industrial environments
- Operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety systems
- Machine safety monitoring and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of approximately 4 W reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK TIM551-2050001 sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable outdoor and indoor object detection.
