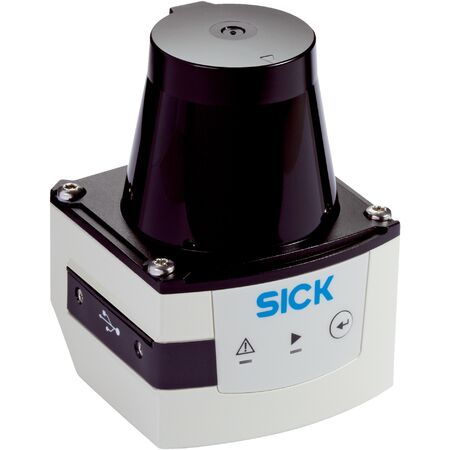

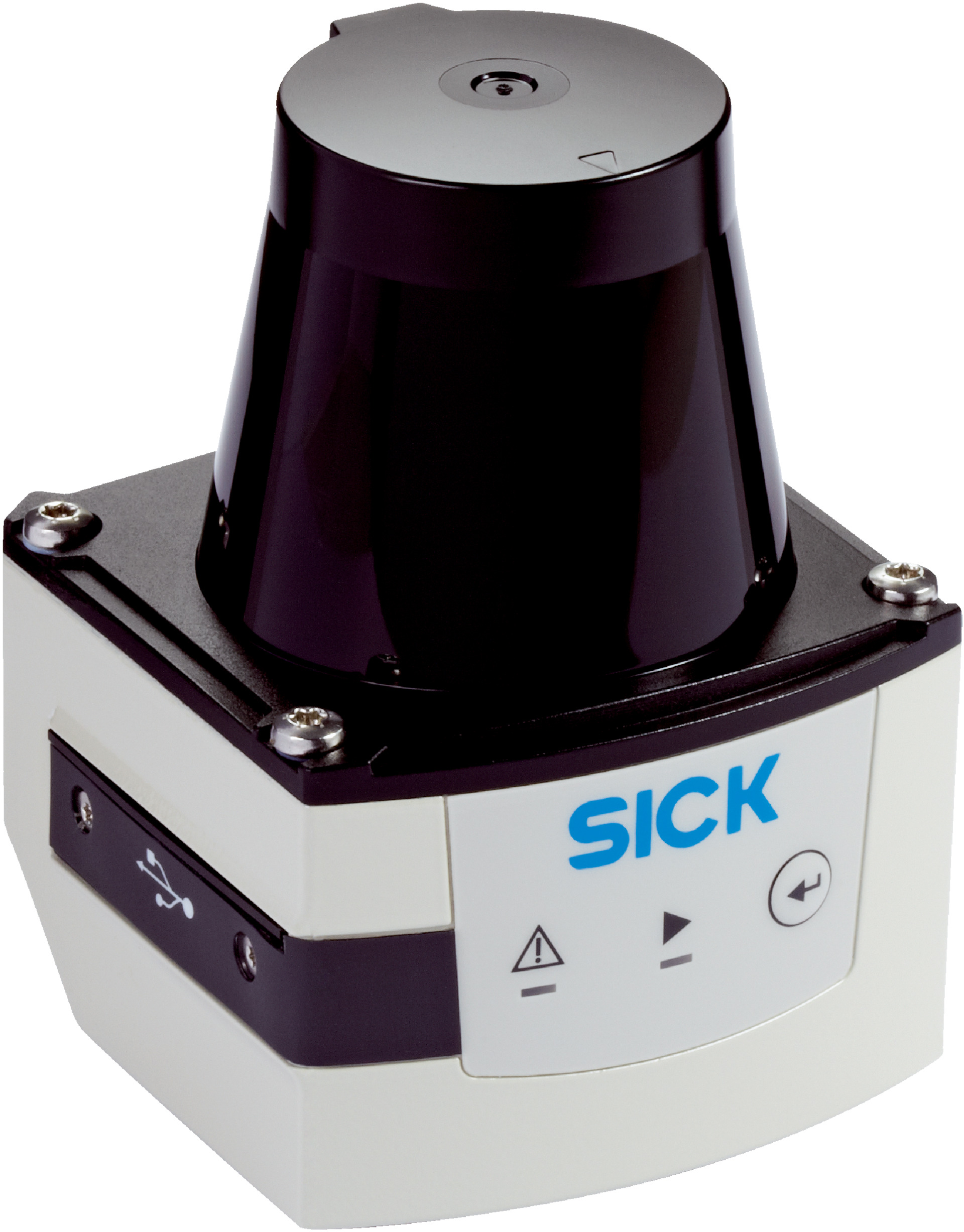

HDDM+ Laser Sensor TIM351-2134001S02 | Infrared Light Source | IP67 Rated | 270° Aperture Angle | by SICK
The HDDM+ Laser Sensor TIM351-2134001S02 is designed for precise object detection and measurement in industrial automation. With an infrared light source and a wide horizontal aperture angle of 270°, it operates effectively in both indoor and outdoor environments. This robust sensor features an IP67 rating, ensuring durability against dust and water, making it ideal for various applications including safety monitoring and field evaluation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measurement principle: HDDM+
- Light source: Infrared (850 nm)
- Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021)
- Aperture angle horizontal: 270°
- Angular resolution horizontal: 1°
- Scanning frequency: 15 Hz
- Working range: 0.05 m to 10 m
- Scanning range at 10% remission factor: 8 m
- Connection types: 1x Ethernet (4-pin M12 female), 1x Power (12-pin M12 male), 1x Micro USB type B
- Supply voltage: 9 V DC to 28 V DC
- Power consumption: Typical 4 W, 16 W with max loaded digital outputs
- Output current: ≤ 100 mA
- Enclosure rating: IP67 (with Aux interface cover closed)
- Protection class: III (IEC 61140:2016-1)
- Response time: 1 scan typically 67 ms
- Digital inputs: 4, Outputs: 3 NPN plus 1 Device Ready
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: up to 50 g
- Vibration resistance: 10 Hz to 1000 Hz
- Dimensions (H x L x W): 86mm x 60mm x 60mm
- Weight: 0.25 kg
Key Features
- Measurement principle: HDDM+ with infrared light source (850 nm)
- Laser class 1 compliant with IEC 60825-1 standards
- Wide horizontal aperture angle of 270° with 1° angular resolution
- Scanning frequency of 15 Hz with working range from 0.05 m to 10 m
- IP67 rated enclosure for robust outdoor and indoor use
- Multiple interfaces including Ethernet, Micro USB, and digital I/O
- Configurable delay and dwell times for flexible operation
- High vibration and shock resistance for industrial environments
- Ambient operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Outdoor and indoor object detection and measurement
- Industrial automation and safety monitoring
- Field evaluation and contour detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of typically 4 W reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK TIM351-2134001S02 sensor is available for immediate purchase, ideal for industrial automation and safety applications in both outdoor and indoor environments.
