HDMI Socket Preterminated 1 Module | IP40 Rated | Magnesium Finish | @Each of 1 | by Legrand

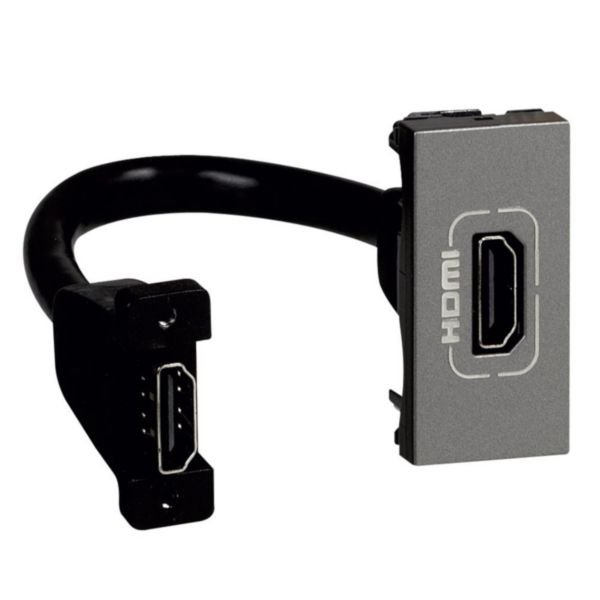

The HDMI socket preterminated 1 module is designed for seamless audio/video connectivity, featuring a 15 cm cord and two female connectors. Ideal for both residential and commercial AV installations, this surface-mounted socket supports high-definition digital audio/video streams and is built with a durable magnesium finish, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: HDMI Socket Preterminated 1 Module | IP40 Rated | Magnesium Finish | @Each of 1 | by Legrand
Brand: Legrand
SKU: 572596
Alternatively Known As: HDMI wall socket, HDMI preterminated socket, HDMI outlet, HDMI data socket
Technical Specifications
- Type: HDMI Type A socket
- Max cable length between sockets: 10 meters
- Preterminated with 15 cm cord and 2 female connectors
- Material: Thermoplastic with magnesium finish
- Mounting: Surface mounted
- Protection rating: IP40
- Impact resistance: IK04
- Operating temperature: -50°C to 50°C
- Storage temperature: -10°C to 70°C
- Number of modules: 1
- Outlet direction: Straight
- Contact type: Female
- Dimensions (H x L x W): 45mm x 50mm x 45mm
- Weight: 0.1 kg
Key Features
- Preterminated HDMI 1.4 socket with 15 cm cord and 2 female connectors
- Supports transmission of High Definition digital audio/video streams
- Surface mounted with 1 module size
- Matt grey thermoplastic material with magnesium finish
- IP40 rated for protection against solid objects
- IK04 impact resistance rating
- Operating temperature range from -50°C to 50°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and proper connectivity.
Applications
- Home and building wiring devices
- Audio/video systems requiring HDMI connectivity
- Residential and commercial AV installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Supports digital transmission reducing analog signal loss and energy waste
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor HDMI Socket Preterminated 1 Module Magnesium is available for immediate purchase, ideal for residential and commercial audio/video installations.
