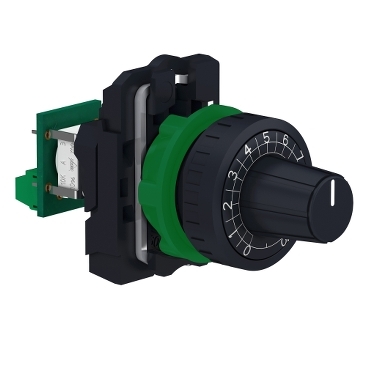

Head and Potentiometer R47K | 47 kΩ Resistance | IP65 Rated | Panel Mount Design | @Pack of 1 | by Clipsal
The Head and Potentiometer R47K is designed for precise resistance adjustment in industrial control panels and automation systems. With a robust 47 kΩ resistance value and IP65-rated front face, it ensures durability and reliability in challenging environments. Ideal for machinery requiring manual adjustment, this potentiometer is built for long-lasting performance and minimal energy waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Head and Potentiometer R47K | 47 kΩ Resistance | IP65 Rated | Panel Mount Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHXB5AD912R4K7
Alternatively Known As: Clipsal Potentiometer 47K, Panel Mount Potentiometer, SCHXB5AD912R4K7, 47K Ohm Potentiometer, Clipsal XB5 Potentiometer
Technical Specifications
- Resistance: 47 kΩ
- Mounting: Panel mount
- Shaft diameter: 6 mm
- Electrical rating: 0.5W at 70°C
- Operating temperature: -25°C to +70°C
- Ingress protection: IP65 (front face)
- Material: Plastic and metal construction
- Dimensions (H x L x W): 50mm x 30mm x 30mm
- Weight: 0.1 kg
Key Features
- Robust potentiometer head for precise resistance adjustment
- 47 kΩ resistance value
- Easy-to-mount design for control panels
- Durable construction for industrial environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician to ensure correct wiring and safety compliance.
Applications
- Industrial control panels
- Automation systems
- Electrical enclosures
- Machinery requiring manual adjustment of resistance
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise control, reducing energy waste in automation systems
- Long-lasting design minimizes replacement frequency and electronic waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Head and Potentiometer R47K SCHXB5AD912R4K7 is available for immediate purchase. Ideal for industrial control panels and automation systems.
