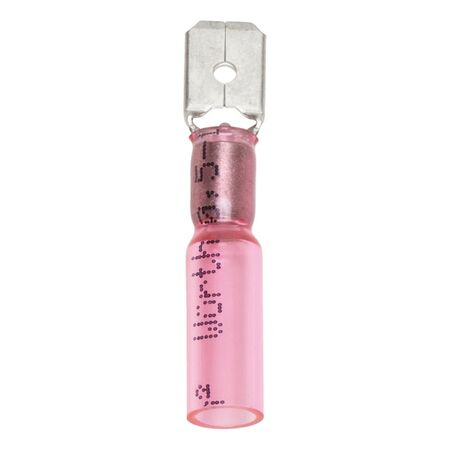

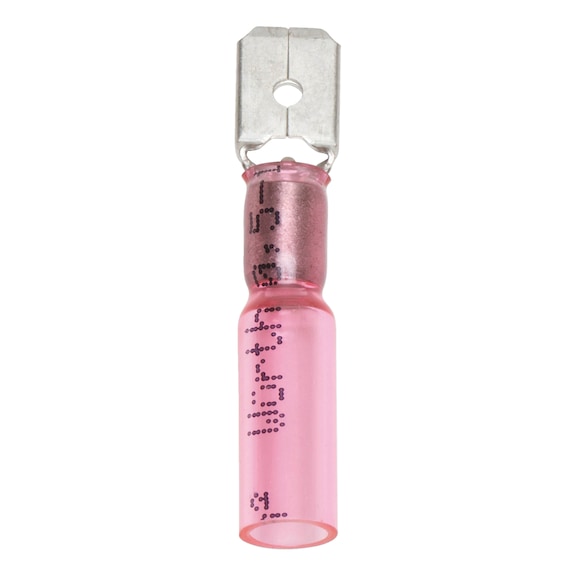

Heat-Shrink Crimp Blade Connector | IP67 Rated | 0.5-1.5 mm² Wire | Red Color | @Pack of 10 | by Wurth
Heat-shrink crimp blade connectors are essential for reliable electrical wiring, featuring a wire cross-section range of 0.5-1.5 mm² and IP67 protection for moisture resistance. Ideal for automotive, industrial, and marine applications, these connectors ensure dust-proof and damp-proof connections, with a semi-transparent design for easy monitoring. Experience a 40% faster shrinking process, making installations quicker and safer.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Crimp Blade Connector | IP67 Rated | 0.5-1.5 mm² Wire | Red Color | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 555512110
Alternatively Known As: Heat shrink blade terminal, Heat shrink crimp connector, Heat shrink electrical connector, Crimp blade terminal, Heat shrink terminal
Technical Specifications
- Min./max. wire cross section: 0.5-1.5 mm²
- Colour: Red
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP 67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 20mm x 6.3mm
- Weight: 0.02 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- 40% faster shrinking process saves time
- Low risk of damage to connector and cable insulation due to low shrinking temperature
- RoHS-compliant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for optimal connection reliability.
Applications
- Electrical wiring and connections
- Automotive electrical repairs
- Industrial machinery wiring
- Marine and outdoor electrical connections requiring moisture protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable and protective design extends connection lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Heat-shrink Crimp Blade Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring applications requiring durable, moisture-resistant connections.
