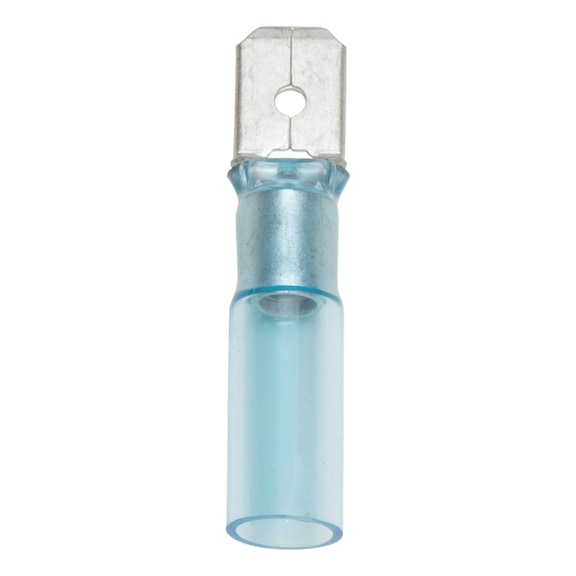

Heat-Shrink Crimp Blade Connector | IP67 Rated | 30 kV Dielectric Strength | Blue | @Pack of 10 | by Wurth
Heat-shrink crimp blade connectors are designed for reliable electrical connections in automotive, industrial, and household applications. With an IP67 rating and a dielectric strength of 30 kV/mm, these connectors ensure dust-proof and damp-proof performance. The semi-transparent heat-shrink tubing allows for easy visual monitoring, making them ideal for quick and secure wire terminations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Crimp Blade Connector | IP67 Rated | 30 kV Dielectric Strength | Blue | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 555512210
Alternatively Known As: Heat Shrink Blade Terminal, Crimp Blade Connector, Heat Shrink Crimp Terminal, Electrical Blade Connector
Technical Specifications
- Min./max. wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP 67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 20mm x 6.3mm
- Weight: 0.05 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- 40% faster shrinking process saves time
- Low risk of damage to connector and cable insulation due to low shrinking temperature
- RoHS-compliant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for optimal electrical safety and performance.
Applications
- Electrical wiring and connections in automotive, industrial, and household applications
- Suitable for use in environments requiring dust-proof and damp-proof connections
- Ideal for quick and reliable wire termination with visual inspection capability
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Heat-shrink Crimp Blade Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring applications requiring reliable, dust-proof, and damp-proof connections.
