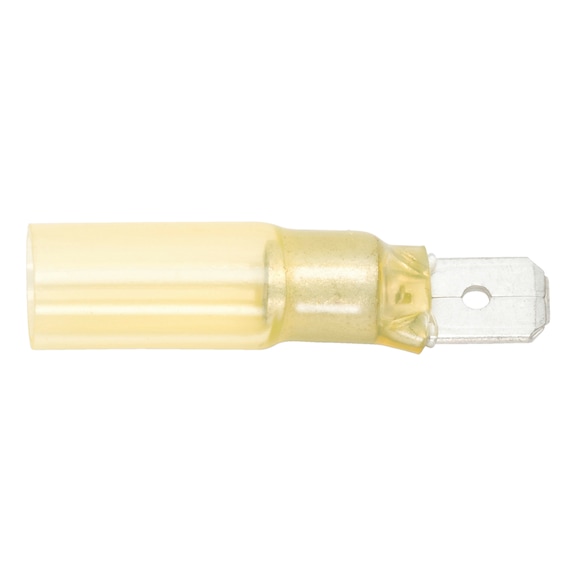

Heat-Shrink Crimp Blade Connector | IP67 Rated | 4-6 mm² Wire | Yellow | @Pack of 10 | by Wurth
Heat-shrink crimp blade connectors are essential for secure electrical wiring, featuring an IP67 rating for dust-proof and damp-proof connections. Designed for 4-6 mm² wire, these connectors ensure optimal performance in automotive, industrial, and marine applications. With a semi-transparent heat-shrink tubing for easy monitoring and a 40% faster shrinking process, they are perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Crimp Blade Connector | IP67 Rated | 4-6 mm² Wire | Yellow | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 555512410
Alternatively Known As: Heat Shrink Blade Terminal, Heat Shrink Crimp Connector, Heat Shrink Electrical Connector, Crimp Blade Terminal, Heat Shrink Wire Connector
Technical Specifications
- Minimum/maximum wire cross section: 4-6 mm²
- Colour: Yellow
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Minimum/maximum temperature conditions: -55 to 125 °C
- Minimum shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 20mm x 6.3mm
- Weight: 0.05 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- 40% faster shrinking process saves time
- Low risk of damage to connector and cable insulation due to low shrinking temperature
- RoHS-compliant
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for optimal electrical safety and performance.
Applications
- Electrical wiring and connections requiring secure, dust-proof, and damp-proof terminals
- Automotive wiring harnesses
- Industrial electrical installations
- Marine and outdoor electrical applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable and reliable connections reduce the need for replacements and waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Heat-shrink Crimp Blade Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring applications requiring secure, dust-proof, and damp-proof connections.
