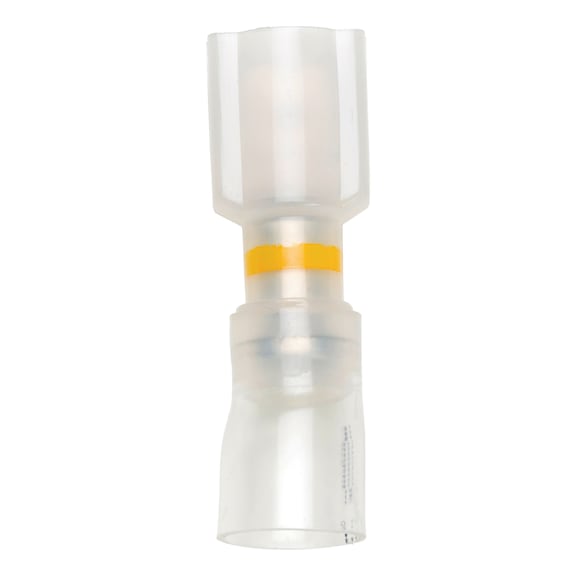

Heat-Shrink Crimp Connector | HIGH-END Blade Connector | IP67 Rated | 25 PCS | Yellow | by Wurth
Heat-shrink crimp connectors with a HIGH-END blade design are perfect for secure electrical wiring in automotive, industrial, and household applications. Featuring IP67 protection and a low shrinkage temperature of 300°C, these connectors ensure reliable moisture and dust resistance. Ideal for professional installations, they offer a 40% faster shrinking process, making them a time-saving choice for electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Crimp Connector | HIGH-END Blade Connector | IP67 Rated | 25 PCS | Yellow | by Wurth
Brand: Wurth
SKU: 555612410
Alternatively Known As: Heat Shrink Blade Connector, Heat Shrink Crimp Terminal, Heat Shrink Electrical Connector, Blade Terminal Connector
Technical Specifications
- Minimum/maximum wire cross section: 4-6 mm²
- Colour: Yellow
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Minimum/maximum temperature conditions: -55 to 125 °C
- Minimum shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 20mm x 6.3mm
- Weight: 0.05 kg
Key Features
- Crystal Clear heat-shrink tubing for optimum visual monitoring of the connection
- 40% faster shrinking process saves time
- Low shrinking temperature of +300°C reduces risk of damage to connector and cable insulation
- RoHS-compliant for environmental safety
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for safety and reliability.
Applications
- Electrical wiring and connections in automotive, industrial, and household applications
- Suitable for use in environments requiring moisture and dust protection
- Ideal for secure and reliable blade connector terminations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant materials reduce hazardous substances
- Low temperature shrinking reduces energy consumption during installation
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Heat-Shrink Crimp Connector HIGH-END Blade Connector 25 PCS is available now for immediate purchase. Ideal for electrical wiring applications requiring secure, moisture-resistant connections.
