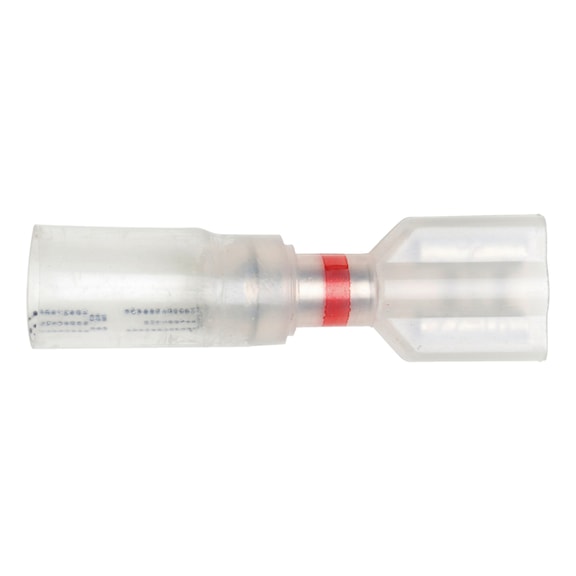

Heat Shrink Crimp Connector | IP67 Rated | 30 kV/mm Dielectric Strength | Red Color | @Pack of 25 | by Wurth
The Heat Shrink Crimp Connector is designed for secure and insulated electrical connections, featuring a robust IP67 rating for dust and water protection. With a dielectric strength of 30 kV/mm and a low shrinking temperature of 300°C, it ensures optimal performance in automotive, industrial, and marine applications. Ideal for professionals, this connector guarantees reliable wiring solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Crimp Connector | IP67 Rated | 30 kV/mm Dielectric Strength | Red Color | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 555612100
Alternatively Known As: Heat shrink crimp sleeve, heat shrink connector, flat plug heat shrink sleeve, crimp connector sleeve, insulated crimp connector
Technical Specifications
- Min./max. wire cross section: 0.5-1.5 mm²
- Colour: Red
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 20mm x 6.3mm
- Weight: 0.05 kg
Key Features
- Crystal ClearTM heat-shrink tubing for optimum visual monitoring of the connection
- 40% faster shrinking process saves time
- Low shrinking temperature of +300°C reduces risk of damage to connector and cable insulation
- RoHS-compliant for environmental safety
- IP67 rated for dust and water protection
- Dielectric strength of 30 kV/mm ensures high electrical insulation
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for optimal electrical safety and performance.
Applications
- Electrical wiring and connections requiring secure and insulated crimp connections
- Automotive wiring harnesses
- Industrial electrical installations
- Marine and outdoor electrical applications requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant materials reduce hazardous substances
- Low shrinking temperature reduces energy consumption during installation
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Heat Shrink Crimp Connector HIGH END Flat Plug in Sleeve is available now for immediate purchase. Ideal for electrical, automotive, and industrial wiring applications requiring reliable and insulated connections.
