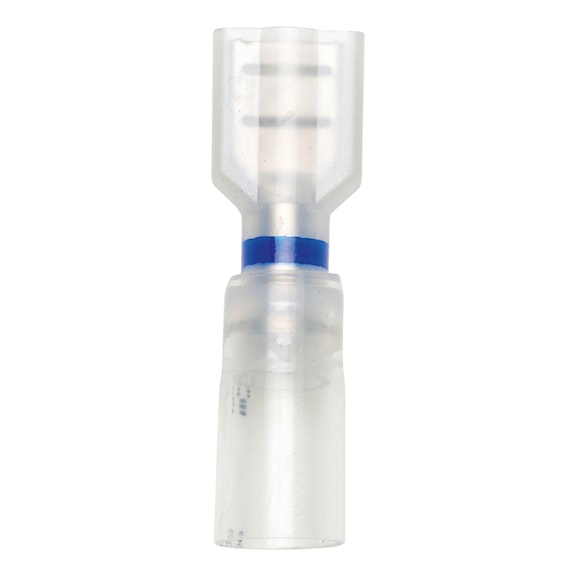

Heat Shrink Crimp Connector | IP67 Rated | 40% Faster Shrinking | Blue | @Pack of 25 | by Wurth
The Heat Shrink Crimp Connector is designed for secure and insulated electrical connections, featuring IP67 protection against dust and water. With a 40% faster shrinking process and a low shrink temperature of 300°C, it's perfect for automotive, industrial, and marine applications. Ensure optimal performance with professional installation for reliable crimping and heat shrinking.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Crimp Connector | IP67 Rated | 40% Faster Shrinking | Blue | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 555612200
Alternatively Known As: Heat Shrink Crimp Sleeve, Heat Shrink Connector, Flat Plug Heat Shrink Terminal, Insulated Crimp Connector
Technical Specifications
- Min./max. wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 25mm x 6.3mm
- Weight: 0.05 kg
Key Features
- Crystal ClearTM heat-shrink tubing for optimum visual monitoring of the connection
- 40% faster shrinking process saves time
- Low shrinking temperature of +300°C reduces risk of damage to connector and cable insulation
- RoHS-compliant
- IP67 rated for protection against dust and water ingress
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for optimal electrical safety and performance.
Applications
- Electrical wiring and connections requiring secure and insulated crimp connections
- Automotive wiring harnesses
- Industrial electrical installations
- Marine and outdoor electrical applications requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable insulation extends product life and reduces waste
- Low shrink temperature reduces energy consumption during installation
Warranty Information
Wurth provides a standard warranty against manufacturing defects. Please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Heat Shrink Crimp Connector HIGH END Flat Plug in Sleeve PSHCON HSHRTUBE BLUE 15-25SMM 25 PCS is available now for immediate purchase. Ideal for electrical, automotive, and industrial wiring applications requiring secure and insulated connections.
