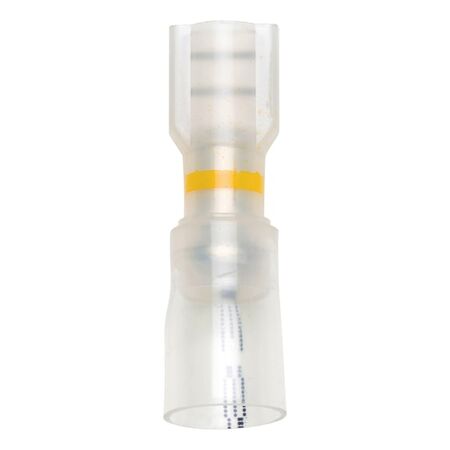

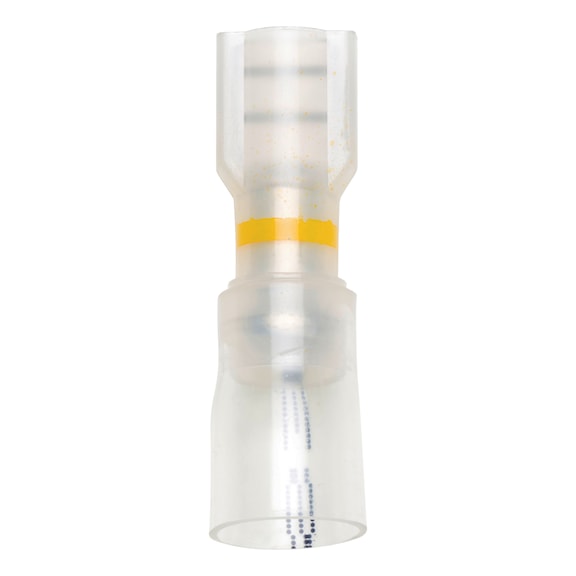

Heat Shrink Crimp Connector | IP67 Rated | 40% Faster Shrinking | RoHS Compliant | @Pack of 25 | by Wurth
The Heat Shrink Crimp Connector is designed for secure, insulated electrical connections, featuring a 40% faster shrinking process and IP67 protection for dust and water resistance. Ideal for automotive and industrial applications, this connector ensures optimal performance with a low shrink temperature of 300°C, minimizing the risk of damage to cables and connectors.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Crimp Connector | IP67 Rated | 40% Faster Shrinking | RoHS Compliant | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 555612400
Alternatively Known As: Heat Shrink Crimp Sleeve, Heat Shrink Connector, Flat Plug Heat Shrink Terminal, Yellow Heat Shrink Sleeve
Technical Specifications
- Minimum/maximum wire cross section: 4-6 mm²
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Minimum/maximum temperature conditions: -55 to 125 °C
- Minimum shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 25mm x 6.3mm
- Weight: 0.05 kg
Key Features
- Crystal ClearTM heat-shrink tubing for optimum visual monitoring of the connection
- 40% faster shrinking process saves time
- Low shrinking temperature of +300°C reduces risk of damage to connector and cable insulation
- RoHS-compliant for environmental safety
- IP67 rated for dust and water protection
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for optimal electrical safety and performance.
Applications
- Electrical wiring and connections requiring secure, insulated crimp connections
- Automotive wiring harnesses
- Industrial electrical installations
- Marine and outdoor electrical applications requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable insulation extends cable life, reducing waste
- Low shrink temperature reduces energy consumption during installation
Warranty Information
Wurth provides a standard warranty against manufacturing defects; please refer to Wurth's official warranty policy for details.
Available Now
The Wurth Heat Shrink Crimp Connector High End Flat Plug Sleeve Yellow 4-6mm² is available now for immediate purchase. Ideal for electrical wiring applications requiring secure, insulated connections with visual inspection capability.
