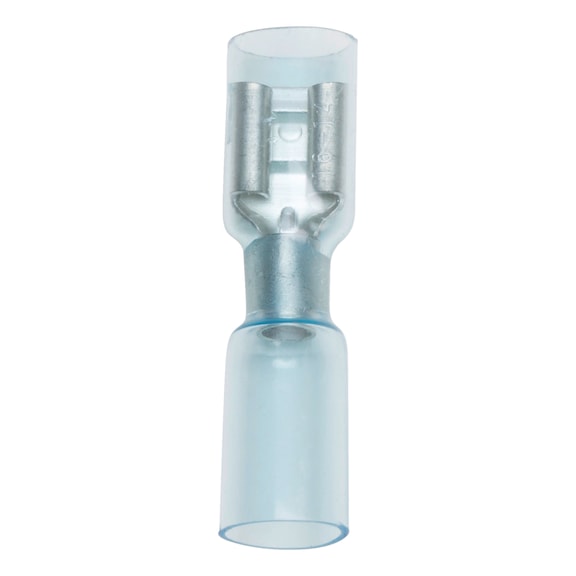

Heat Shrink Crimp Connector Push Connector | IP67 Rated | 30 kV/mm Dielectric Strength | 10 PCS | by Wurth
Heat shrink crimp connector push connector designed for reliable electrical connections, featuring an IP67 rating and a dielectric strength of 30 kV/mm. Ideal for automotive, industrial, and marine applications, this connector ensures dust-proof and damp-proof connections, making it perfect for outdoor installations. With a semi-transparent heat-shrink tubing for easy monitoring, it offers a 40% faster shrinking process, ensuring a secure fit every time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat Shrink Crimp Connector Push Connector | IP67 Rated | 30 kV/mm Dielectric Strength | 10 PCS | by Wurth
Brand: Wurth
SKU: 555512200
Alternatively Known As: Heat shrink push connector, crimp connector tubing, waterproof electrical connector sleeve, heat shrink tubing connector
Technical Specifications
- Wire cross section range: 1.5-2.5 mm²
- Nominal size of flat plug/push connector/blade connector: 6.3 x 0.8 mm
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Operating temperature range: -55 to 125 °C
- Minimum shrinkage temperature: 300 °C
- Dimensions (H x L x W): 0.8mm x 25mm x 6.3mm
- Weight: 0.02 kg
Key Features
- Dust-proof and damp-proof connections
- Semi-transparent heat-shrink tubing for straightforward visual monitoring of the connection
- 40% faster shrinking process saves time
- Low risk of damage to connector and cable insulation due to low shrinking temperature
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for reliable and safe connections.
Applications
- Electrical wiring and cable connections
- Automotive electrical repairs
- Industrial and machinery wiring
- Marine and outdoor electrical installations requiring waterproof connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable waterproof design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Heat Shrink Crimp Connector Push Connector PSHCON HSHRTUBE BLUE 15-25SMM 10 PCS is available now for immediate purchase. Ideal for electrical wiring and repair applications requiring durable, waterproof connections.
