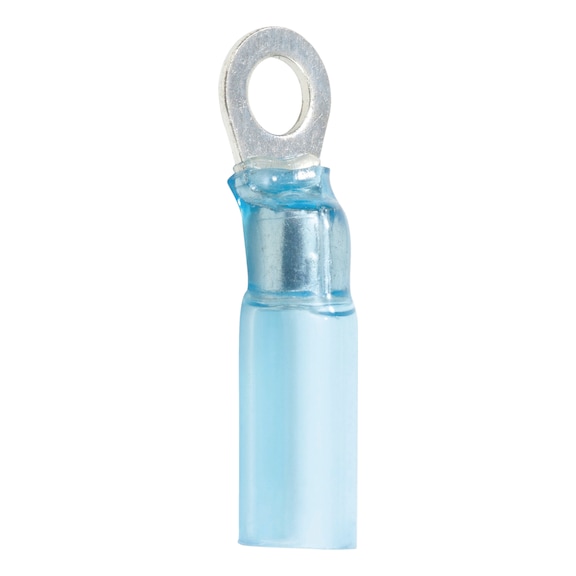

Heat-Shrink Crimp Ring Connector | IP67 Rated | 1.5-2.5 mm² Wire | Blue | @Pack of 10 | by Wurth
Heat-shrink crimp ring connectors are essential for secure electrical wiring, featuring an IP67 rating for waterproof connections. Designed for 1.5-2.5 mm² wire, these connectors offer a semi-transparent tubing for easy inspection and a low shrinking temperature to protect insulation. Ideal for automotive, industrial, and marine applications, they ensure durability and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Crimp Ring Connector | IP67 Rated | 1.5-2.5 mm² Wire | Blue | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5559112
Alternatively Known As: Heat shrink ring terminal, Heat shrink crimp connector, Heat shrink cable connector, Crimp ring terminal, Heat shrink tubing connector
Technical Specifications
- Wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Flange hole size: M8
- Dielectric strength: 30 kV/mm
- IP protection class: IP67
- Operating temperature range: -55 to 125 °C
- Minimum shrinkage temperature: 100 °C
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.05 kg
Key Features
- Semi-transparent heat shrink tubing allows easy visual inspection of the connection
- 40% faster shrinking process saves time
- Low shrinking temperature reduces risk of damage to connector and cable insulation
- RoHS-compliant for environmental safety
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for safety and durability.
Applications
- Electrical wiring and cable connections
- Automotive and industrial electrical repairs
- Marine and outdoor electrical installations requiring waterproof connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable and reliable connections reduce waste from faulty electrical joints
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Heat-Shrink Crimp Ring Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring, automotive, and industrial applications requiring secure and waterproof connections.
