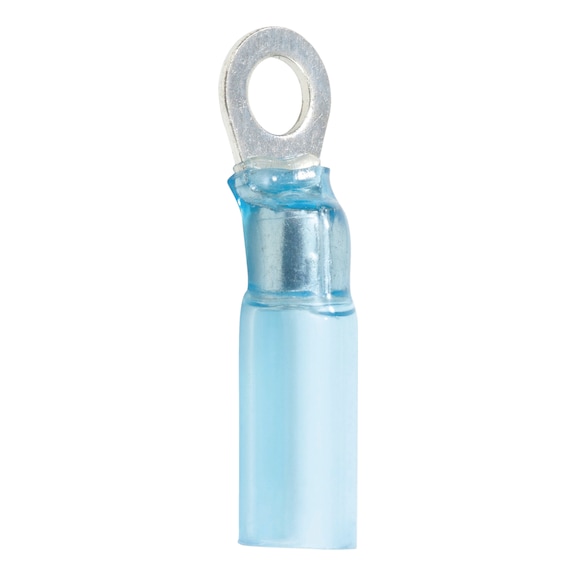

Heat-Shrink Crimp Ring Connector | IP67 Rated | 40% Faster Shrinking | Blue Color | @Pack of 10 | by Wurth
Heat-shrink crimp ring connectors are essential for reliable electrical wiring and cable connections. With a semi-transparent design for easy inspection, these connectors feature a low shrinking temperature and IP67 rating, making them ideal for automotive and industrial applications. Designed for professional installation, they ensure safety and performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Crimp Ring Connector | IP67 Rated | 40% Faster Shrinking | Blue Color | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 5559102
Alternatively Known As: Heat shrink ring terminal, Heat shrink crimp connector, Heat shrink cable connector, Crimp ring terminal
Technical Specifications
- Min./max. wire cross section: 1.5-2.5 mm²
- Colour: Blue
- Flange hole: M6
- Dielectric strength: 30 kV/mm
- IP protection class: IP 67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 100 °C
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.02 kg
Key Features
- Semi-transparent heat shrink tubing allows easy visual inspection of the connection
- 40% faster shrinking process saves time
- Low shrinking temperature reduces risk of damage to connector and cable insulation
- RoHS-compliant for environmental safety
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for safety and performance.
Applications
- Electrical wiring and cable connections
- Automotive and industrial cable harnessing
- General electrical insulation and protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Low temperature shrinking reduces energy consumption during installation
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Heat-Shrink Crimp Ring Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring and cable protection applications.
