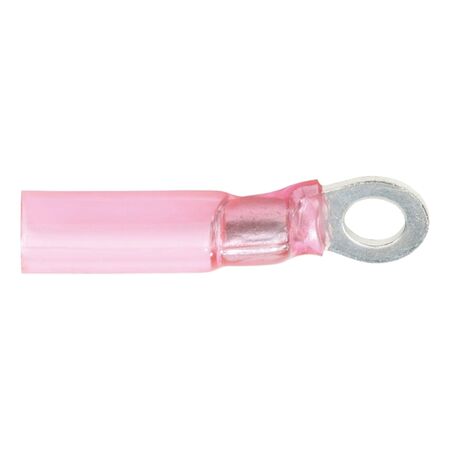

Heat-Shrink Crimp Ring Connector | Red | IP67 Rated | 10 PCS | by Wurth
Heat-shrink crimp ring connectors are essential for reliable electrical wiring and cable connections. With a robust IP67 rating and a temperature range of -55 to 125 °C, these connectors ensure optimal insulation and protection. The semi-transparent tubing allows for easy visual inspection, while the 40% faster shrinking process saves time during installation. Ideal for automotive and industrial electrical repairs, these connectors are RoHS-compliant for environmental safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Heat-Shrink Crimp Ring Connector | Red | IP67 Rated | 10 PCS | by Wurth
Brand: Wurth
SKU: 5559011
Alternatively Known As: Heat shrink ring terminal, Heat shrink crimp connector, Heat shrink cable connector, Crimp ring terminal
Technical Specifications
- Min./max. wire cross section: 0.5-1.5 mm²
- Colour: Red
- Flange hole: M4
- Dielectric strength: 30 kV/mm
- IP protection class: IP 67
- Min./max. temperature conditions: -55 to 125 °C
- Min. shrinkage temperature: 100 °C
- Dimensions (H x L x W): 10mm x 100mm x 50mm
- Weight: 0.05 kg
Key Features
- Semi-transparent heat shrink tubing allows easy visual inspection of the connection
- 40% faster shrinking process saves time
- Low shrinking temperature reduces risk of damage to connector and cable insulation
- RoHS-compliant for environmental safety
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and heat shrinking for safety and performance.
Applications
- Electrical wiring and cable connections
- Automotive and industrial electrical repairs
- Insulation and protection of wire connections
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Low temperature shrinking reduces energy consumption during installation
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Heat-Shrink Crimp Ring Connector 10 PCS is available now for immediate purchase. Ideal for electrical wiring and cable protection applications.
